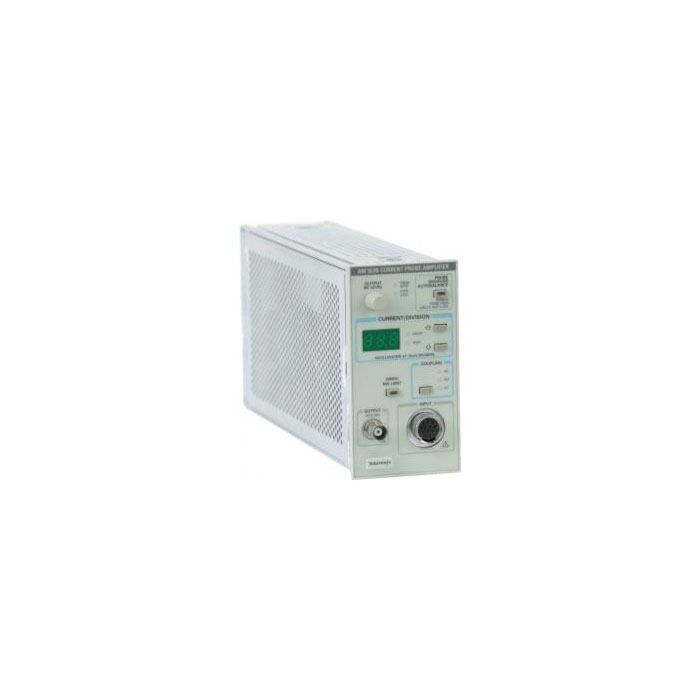

Tektronix AM503B for Rent, AC/DC Manual Current Probe Amplifier
AC/DC Manual Current Probe Amplifier
Order #: AM503B-RENT2
Mfg #: AM503B
Call for price
Call for price
Tektronix AM503B for Rent, AC/DC Manual Current Probe Amplifier
AC/DC Manual Current Probe Amplifier
Order #: AM503B-RENT2
Mfg #: AM503B
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability: Call for Availability
Tektronix AM503B Highlights
The AM503B current probe amplifier allows display of current on any oscilloscope having 10 mV/div sensitivity, 50 ohm or 1 megohm input, and at least 100 MHz bandwidth (400 MHz for A6312). It is compatible with A6302, A6302XL, A6303, A6303XL, A6304XL, A6312, P6302, or P6303 current probes. It requires a TM500 or TM5000 series mainframe for operation.
- Allows for current display on any oscilloscope
- Maximum input current: 20A for 6302 & A6312; 100A for 6303; 500A for A6304XL
- Bandwidth: >50 MHz 6302; >15 MHz 6303; >2 MHz A6304XL; >100 MHz A6312
- Push button auto balance/degauss
- LED current/division display
- Weight: 5 lb; Size: single width module
- Plugs into TM500/5000 Power Modules. For Current Display on an oscilloscope. Bandwidth up to 100MHz, current up to 500A
