Overview

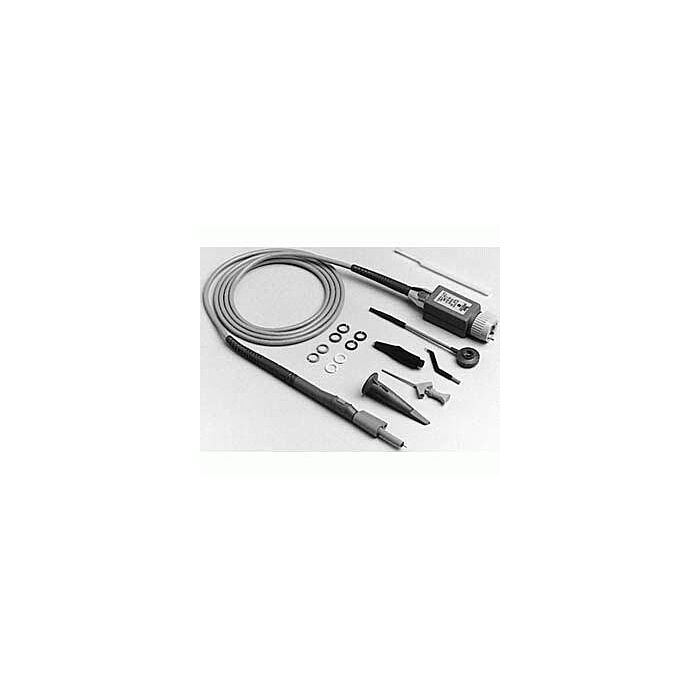

Tektronix P6131 Highlights
The P6131 probe is a subminiature, 10X, passive probe designed specifically for use with Tektronix 2400 Series oscilloscopes. It is fully compatible with the Tektronix family of subminiature probe accessories. The P6131 is available with 1.3 and 2 meter cable.
Bandwidth : DC to 300 MHz (1.3 meter, 2465 or 7A42)
DC to 250 MHz (2 meter, 2465 or 7A42)
DC to 150 MHz (1.3 or 2 meter, 2445)
Attenuation : 10X ±1% at DC
Input Resistance : 10 MΩ ±1%
Input Capacitance : 10.8 pF (1.3 meter)
13.5 pF (2 meter)
Scope Input Resis : 1 MΩ
Compensation Range : 14pF to 18pF
Readout Pin : YES
Ground Ref : NO
ID Button : NO
Max Rated Voltage : 300 VRMS (Cat I)
150 VRMS (Cat II)
100 VRMS (Cat III)
Cable Length : 1.3 or 2 meters
Net Weight : 3.8 oz (108 g) (1.3 meter)
4.8 oz (129 g) (2 meter)
Scope Compatibility : 2400 Series (2445, 2465) and 7A42
