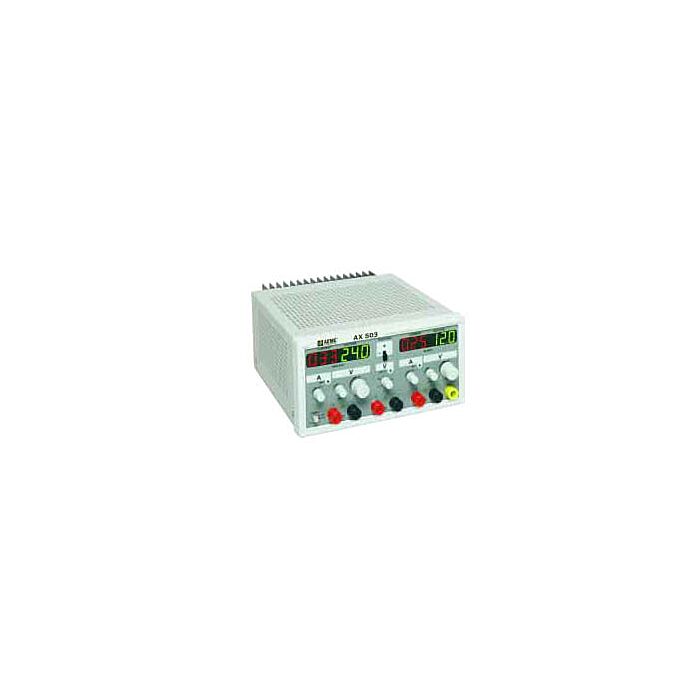

AEMC Instruments AX503 DC Power Supply
DC Power Supply, 3 Outputs
Order #: 2130.07
Mfg #: 2130.07
Special Price
$1,556.10
Regular Price
$1,638.00
Special Price
$1,556.10
Regular Price
$1,638.00
Availability: Call for availability
Product Highlights
- AEMC Model # AX503 AEMC Catalog # 2130.07
- Adjustable 30VDC at up to 2.5A
- Adjustable 5VDC at 5A with 3 and 5V positions
- Connect the 30V outputs together to double voltage or current
- Master/slave tracking with quick and easy setup
- Coarse and Fine voltage adjustments
- Current Limit adjustment with LED indication
- Short circuit protected at full rated current
- Display V and A simultaneously
- Front panel safety input terminals
- Front panel ground terminal
- 3 Outputs (2 outputs at 0-30VDC and one at 2.7 to 5.5VDC)
- Output 3 has no display
- Voltage Display resolution: 100mV
- Current resolution: 10mA
- Accuracy: ±0.5% reading ±1ct
- Ripple: ± 1mVrms
- Dimensions: 10.63 x 8.86 x 7.73" (270 x 225 x 120 mm)
- Weight: 13.2 lbs (6kg)
Each Unit Includes
- Power Cord
- Instruction Manual
- AEMC Instruments 2117.78 Lead Set for AX Series Power SuppliesLead Set for AX Series Power Supplies
Order #: 2117.78
Mfg #: 2117.78
Availability: Call for availabilitySpecial Price $180.88 Regular Price $190.40
