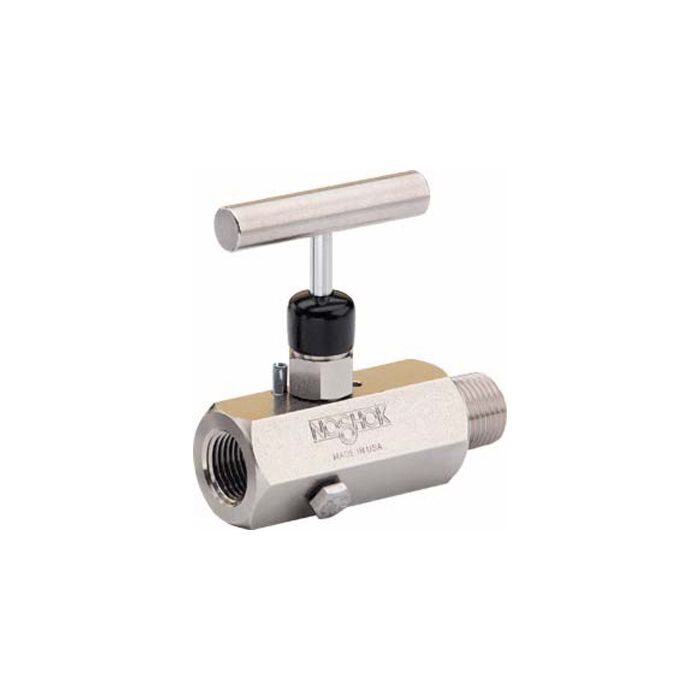

NOSHOK 704-FFS
Needle Valve,Soft Seat 6K PSI
Order #: 704-FFS
Mfg #: 704-FFS
Special Price
$311.09
Regular Price
$324.06
NOSHOK 704-FFS
Needle Valve,Soft Seat 6K PSI
Order #: 704-FFS
Mfg #: 704-FFS
Special Price
$311.09
Regular Price
$324.06
Availability: Call for availability
Product Highlights
- Soft seat design is 100% Helium leak tested to 1 x 10-4 ml/s at 200 psi
- 6,000 psi pressure rating (at 200 °F maximum)
- Replaceable Delrin seat
- Straight through porting for bi-directional, high capacity flow and easy roddable cleaning
- Blow-out proof stem design provides a secondary stem seal in the full open position
- Stem seal below the threads prevents thread contamination
- Viton O-Ring and Teflon back-up ring stem seals
- All 316SS stems (even in steel valves) for longer life
- Stem and bonnet threads are rolled for greater strength and smoother operation
- One piece bonnet with a metal to metal seal to the valve body below the bonnet threads
- Bonnet lock pin to prevent accidental loosening
- Vinyl bonnet dust cap
- .187 inch orifice size
- Optinal panel mount bonnet and panel nuts
- Electroless Nickel plated finish on carbon steel valves
- Electropolish finish on stainless steel valves
