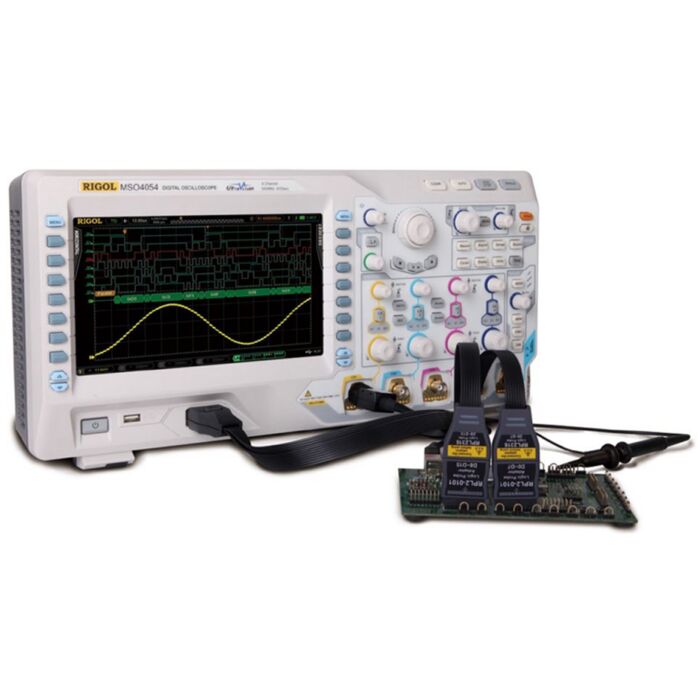

Rigol MSO4000 Digital Oscilloscope

The MSO4000 series digital oscilloscope is a versatile, high performance mixed signal oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s, 2 or 4 analog channels, and 16 digital logic channels, the MSO4000 is ideal for a wide variety of engineers working in communications, defense, aerospace, industrial electronics, R&D and educational fields.

Why Buy the Rigol MSO4000 Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!

MSO4000 is a multifunctional and high-performance digital oscilloscope developed using RIGOL Ultra Vision chipset. MSO4000 series is a mixed-signal oscilloscope which is optimized for the debugging in embedded design and test areas that require simultaneous measurement of both analog and digital signals. MSO4000 provides superb specifications, convenient functions, and easy-to-use design which help users fulfill their tasks (such as measurement and remote control) more quickly.

MSO4000 Main Features

• 500 MHz, 350 MHz, 200 MHz and 100 MHz bandwidth; some models support the bandwidth upgrade function
• 2+16 channel or 4+16 channel MSO4000 series mixed signal oscilloscope
• Up to 4 GSa/s analog channel sample rate, 140 Mpts maximum memory depth (standard). Up to 1 GSa/s digital channel sample rate, 28 Mpts maximum memory depth (per channel)
• 110 000 wfms/s (digital channels are turned off) waveform refresh rate or 85 000 wfms/s (digital channels are turned on) waveform refresh rate (dots display)
• UltraVision technique
• 9.0 inch WVGA (800*480) 160 000 color TFT LCD, with ultra-wide screen, vivid picture, low power consumption and long service life
• Automatic probe identification
• Adjustable brightness of analog channel waveform
• Auto setting of waveform display (AUTO)
• Various trigger functions including multiple protocol triggers and supporting digital channels as trigger source
• Provide standard parallel decoding, multiple serial decoding options and mixed decoding using analog channel and digital channel as the decoding source at the same time
• Auto measurements of 29 waveform parameters and measurement functions with statistics
• Real-time waveform recording, waveform playback, record open (constant on) and waveform analysis, supporting recording and playback of digital channel waveforms
• Precise delayed sweep function
• Built-in FFT function
• Built-in logic analyzer function (MSO4000 series)
• Pass/Fail test function
• Multiple waveform math operation functions
• Standard interfaces: dual USB HOST, USB DEVICE, LAN and GPIB (optional)
• Support USB storage device and PictBridge printer
• Conform to LXI-C standard; enable quick, economic and efficient creation and reconfiguration of test system
• Support remote command control
• Embedded help enables easier information access
• Support multiple languages and Chinese/English input
• Support one-key measurement, storage and print
• Convenient digital channel grouping and operating functions
