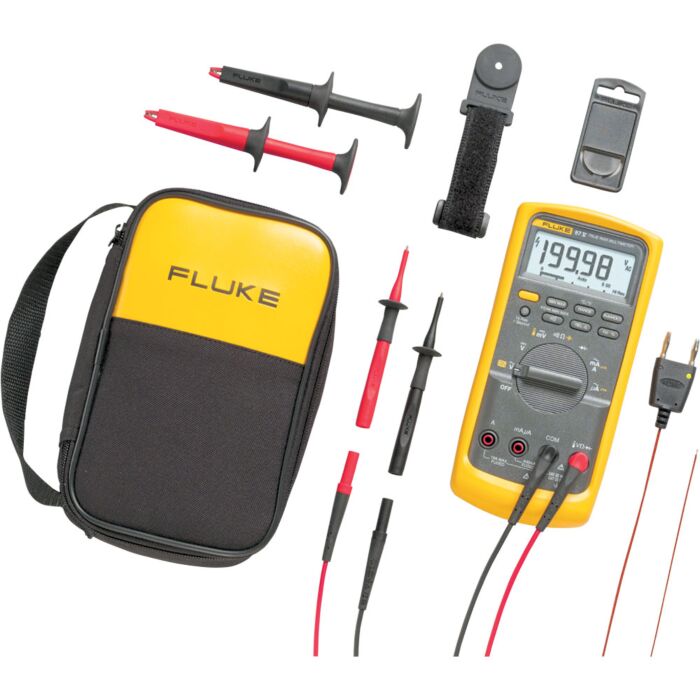

Fluke 87-5/E2 KIT 87V Industrial True-RMS Multimeter Combo Kit

Order # 65169MM | Mfg # 2670150

Save 11%

$1,131.59

$1,007.11

In stock

Large Display digits and two-level bright white backlight for increased visibility.

Tariff fees or manufacturer imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Unique function for accurate voltage and frequency measurements on adjustable speed True-rms ac voltage and current for accurate measurements on non linear signals
Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
Measure up to 1000 V ac and dc
Measure up to 10 A (20 A for 30 seconds)
10,000 uF capacitance range
Frequency to 200 kHz and % duty cycle
Peak capture to record transients as fast as 250

Technical Resources

Fluke 80 Series V Industrial Multimeter - User's Manual
Fluke 80 Series V Industrial Multimeter - User's Manual Supplement
Fluke 80 Series V Industrial Multimeter - Calibration Manual
Fluke 80 Series V Industrial Multimeter - Calibration Manual Supplement
Fluke 80 Series V Industrial Multimeter - Safety Sheet
Fluke 80 Series V Industrial Multimeter - Quick Reference Guide
Fluke 80 Series V Industrial Multimeter - Statement of Memory Volatility
Fluke 80 Series V Industrial Multimeter - CSA Certificate of Conformity
Fluke 80 Series V Industrial Multimeter - EMC Certificate of Conformity
Fluke 80 Series V Industrial Multimeter - TUV SUD Certificate of Conformity
Application - Detecting Intermittents with a DMM
Application - Troubleshooting Power Harmonics
Application - Who Sets the Rules for Electrical Testing and Safety
Brochure - Add Wireless to your Fluke Digital Multimeter
Brochure - Fluke DMM Selection Guide
Brochure - Fluke 27II / 28II Sales Conversion Guide
Brochure - The New Standard for Rugged
Fluke 83V / 87V Digital Multimeter - Technical Data
White Papers - Multimeter Safety by the Numbers
Fluke - Electrical Safety Measurement Webinar

Specifications

Specifications
Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.05% + 1)
	Maximum resolution	10 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.7% + 2) True RMS
	AC bandwidth	20 kHz with low pass filter; 3 db @ 1 kHz
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.2% + 2)
	Maximum resolution	0.01 µA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.0% + 2) True RMS
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.90%
	Accuracy	±(0.2% per khz + 0.1%)
	Maximum resolution	0.10%
Temperature measurement	–200.0°C – 1090°C
	–328.0°F – 1994.0°F
	excluding probe
80 BK temperature probe	–40.0°C – 260°C
	–40.0°F – 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty cycle range	Accuracy	Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature	–20°C to + 55°C
Storage temperature	–40°C to + 60°C
Humidity (without condensation)	0% – 90% (0°C – 35°C)
	0% – 70% (35°C – 55°C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals	UL, CSA, TÜV, VDE listed
Mechanical and General Specifications
Size	201 x 98 x 52 mm (with holster)
Weight	355 g
	624 g – with holster
Display	Digital	6000 counts updates 4/sec.
		19,999 counts in high–resolution mode
	Analog	32 segments, updates 40/sec
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Warranty	Lifetime
Battery Life	Alkaline	~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010–1:2001
Vibration	Per MIL–PRF–28800 for a Class 2 instrument

Visit our Fluke Digital Multimeter Selection Guide

Fluke 87-5/E2 KIT 87V Industrial True-RMS Multimeter Combo Kit Accessories

Fluke C115 Soft Carry Case with Shoulder Strap

Special Price $77.36 Save 11 % Regular Price $86.93

View details

Fluke TLK289 Industrial Master Test Lead Set

Special Price $321.77 Save 11 % Regular Price $361.55

View details

Fluke PRV240 Battery-powered voltage source proving unit

Special Price $262.82 Save 11 % Regular Price $295.31

View details

Fluke AC283 HD Plunger-style Pincer Grip Set

Special Price $85.96 Save 11 % Regular Price $96.59

View details

Fluke TL932 Patch Cords, 36" (90cm)

Special Price $46.66 Save 11 % Regular Price $52.43

View details

Fluke TL935 Patch Cord Kit (60, 90, 120cm)

Special Price $114.21 Save 11 % Regular Price $128.33

View details

Fluke TL910 Electronic Test Probes with Replacement Tips

Special Price $135.09 Save 11 % Regular Price $151.79

View details

Fluke TL81A Deluxe Electronic Test Lead Kit

Special Price $291.07 Save 11 % Regular Price $327.05

View details

Fluke TP80 Electronic Test Probes

Special Price $73.68 Save 11 % Regular Price $82.79

View details

Fluke I1010-KIT AC/DC Current Clamp with Meter Carrying Case

Special Price $763.93 Save 11 % Regular Price $858.35

View details

Fluke TL75 Hard Point Test Lead Set

Special Price $49.11 Save 11 % Regular Price $55.19

View details

Myron L Company TP1

Special Price $1,273.50 Save 8 % Regular Price $1,384.24

View details

Fluke I410 AC/DC Clamp-on Current Probe, 400A

Special Price $449.51 Save 11 % Regular Price $505.07

View details

Fluke 80K-40 High Voltage Probe High Voltage Probe

Special Price $469.16 Save 11 % Regular Price $527.15

View details

Fluke TLK-220 US SureGrip Accessory Set with Meter Carrying Case

Special Price $293.53 Save 11 % Regular Price $329.81

View details

Fluke TL40 Retractable Tip Test Lead Set

Special Price $93.33 Save 11 % Regular Price $104.87

View details

Fluke 80PK-26 SureGrip Tapered Temperature Probe

Special Price $230.89 Save 11 % Regular Price $259.43

View details

Fluke AC89 Insulation Piercing Clip

Special Price $84.73 Save 11 % Regular Price $95.21

View details

Fluke TP220 SureGrip Industrial Test Probes

Special Price $44.20 Save 11 % Regular Price $49.67

View details

Fluke TL940 Mini-Hook Test Leads

Special Price $57.71 Save 11 % Regular Price $64.85

View details

Fluke TL950 Mini-Pincer Test Leads

Special Price $89.64 Save 11 % Regular Price $100.73

View details

Fluke L200 Probe Light

Special Price $59.60 Save 4 % Regular Price $62.09

View details

Fluke 80PK-24 SureGrip Air Temperature Probe

Special Price $230.89 Save 11 % Regular Price $259.43

View details

Fluke 80K-6 High Voltage Probe

Special Price $299.67 Save 11 % Regular Price $336.71

View details

Fluke AC87 Heavy Duty Bus Bar Clip Set

Special Price $85.96 Save 11 % Regular Price $96.59

View details

Fluke I410-KIT AC/DC Current Clamp with Carrying Case

Special Price $533.02 Save 11 % Regular Price $598.91

View details

Fluke TL970 Hook & Pincer Test Lead Kit

Special Price $175.62 Save 11 % Regular Price $197.33

View details

Fluke C25 Soft Carrying Case for Fluke Meters

Special Price $74.91 Save 11 % Regular Price $84.17

View details

Fluke TL80A Basic Electronic Test Lead Kit

Special Price $158.42 Save 11 % Regular Price $178.01

View details

Fluke TL960 Micro-Hook Test Leads

Special Price $68.77 Save 11 % Regular Price $77.27

View details

Fluke TL221 Safety Silicone Lead Extension, 1.5m

Special Price $60.17 Save 11 % Regular Price $67.61

View details

Fluke 80PK-25 SureGrip Piercing Temperature Probe

Special Price $230.89 Save 11 % Regular Price $259.43

View details

Fluke AC280 SureGrip Hook Clips

Special Price $74.91 Save 11 % Regular Price $84.17

View details

Fluke AC220 SureGrip Alligator Clips

Special Price $88.42 Save 11 % Regular Price $99.35

View details

Fluke C550 Premium Tool Bag - Water Resistant

Special Price $185.44 Save 11 % Regular Price $208.37

View details

Fluke L210 Probe Light Kit

Special Price $107.29 Save 4 % Regular Price $111.77

View details

Fluke TL222 SureGrip Silicone Right Angle Test Lead Set

Special Price $60.17 Save 11 % Regular Price $67.61

View details

Fluke 80PK-27 SureGrip Industrial Surface Temperature Probe

Special Price $587.07 Save 11 % Regular Price $659.63

View details

Fluke 80AK Thermocouple Adapter Type K

Special Price $68.77 Save 11 % Regular Price $77.27

View details

Fluke TP920 Test Probe Adapter Set

Special Price $81.05 Save 11 % Regular Price $91.07

View details

Fluke Toolpak Meter Hanging Kit

Special Price $74.91 Save 11 % Regular Price $84.17

View details

Fluke C1600 Gear Box for Meter and Accessories

Special Price $160.88 Save 11 % Regular Price $180.77

View details

Fluke H900 Test Lead Holder

Special Price $57.71 Save 11 % Regular Price $64.85

View details

Fluke TL220 Industrial Test Lead Set for All Fluke Meters

Special Price $148.60 Save 11 % Regular Price $166.97

View details

Fluke TL175 TwistGuard Test Leads

Special Price $62.62 Save 11 % Regular Price $70.37

View details

Fluke L215 SureGrip Kit with Probe Light and Probe Extender

Special Price $217.25 Save 4 % Regular Price $226.31

View details

Fluke TL224 SureGrip Silicon Test Leads

Special Price $60.17 Save 11 % Regular Price $67.61

View details

Fluke I200 200A AC Clamp with Banana Jack

Special Price $299.67 Save 11 % Regular Price $336.71

View details

Fluke CXT80 Rugged Pelican Hard Case

Special Price $361.08 Save 11 % Regular Price $405.71

View details

Fluke 80PK-8 Probe Pipe Clamp, Temperature Probe

Special Price $329.14 Save 11 % Regular Price $369.83

View details

Fluke TL71 Premium Test Lead Set

Special Price $58.94 Save 11 % Regular Price $66.23

View details

Fluke BP980 Double Banana Plug Kit

Special Price $85.96 Save 11 % Regular Price $96.59

View details

Fluke TL26A 60" 5-Way Test Lead Set

Special Price $122.81 Save 11 % Regular Price $137.99

View details

Fluke TL76 2mm/4mm Probe & Silicone Test Lead Set

Special Price $72.45 Save 11 % Regular Price $81.41

View details

Fluke TL930 Patch Cords, 24" (60cm)

Special Price $46.66 Save 11 % Regular Price $52.43

View details

Fluke H80M Protective Holster with Magnetic Strap

Special Price $100.70 Save 11 % Regular Price $113.15

View details

Fluke TLK-225 SureGrip Master Accessory Set

Special Price $309.49 Save 11 % Regular Price $347.75

View details

Fluke C35 Soft Carrying Case, Polyester,Black/Yellow

Special Price $61.40 Save 11 % Regular Price $68.99

View details

Total:

All Products in Series

Fluke 289/FVF FlukeView Forms Combo Kit

$1,683.59

View details

Fluke 287 True-RMS Electronics Logging Multimeter with TrendCapture

Special Price $1,063.61 Save 11 % Regular Price $1,195.07

View details

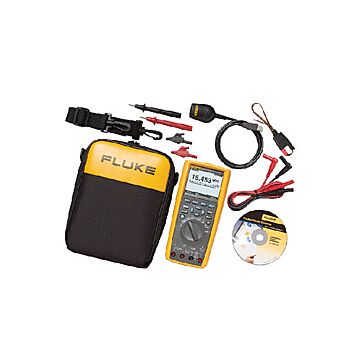

Fluke 287/FVF True-RMS Logging DMM with Trend Capture & FLukeview Software

$1,598.03

View details

Fluke 289 50,000 Count True-RMS Logging Multimeter with TraceCapture

Special Price $1,240.47 Save 11 % Regular Price $1,393.79

View details

Fluke 87-5 Industrial True RMS Multimeter with Temperature

Special Price $712.34 Save 11 % Regular Price $800.39

View details

Fluke 87V/PRV240 True-RMS DMM & voltage source proving unit kit

Special Price $970.26 Save 11 % Regular Price $1,090.19

View details

Fluke 83-5 83V Digital Industrial Multimeter

Special Price $663.21 Save 11 % Regular Price $745.19

View details

Fluke 87-5 for Rent, Industrial True RMS Multimeter

View details

Fluke 87V/IMSK Industrial Multimeter Service Combo Kit

Special Price $792.18 Save 11 % Regular Price $890.09

View details
