Fluke 287/FVF True-RMS Logging DMM with Trend Capture & FLukeview Software

Order # 287/FVF | Mfg # 3340186

$1,573.59

Ships in 3-4 weeks

True RMS Industrial Logging Multimeter with TrendCapture.

Check out Transcat's Fluke Digital Multimeter Selection Guide!

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

The Fluke 287 True-RMS Electronics Logging Multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Its unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before.

Product Highlights

Save when you buy the Fluke 287 Logging Multimeter with TrendCapture + FlukeView® Forms software together
Maximize productivity with the combined Fluke 287 and FlukeView forms combo kit
Designed for today's professionals involved in the R & D, maintenance, manufacture and design of electronic circuits or systems
With built-in data logger and TrendCapture capability, the 287 helps you track down elusive, intermittent problems or monitor equipment with any of its functions
FlukeView Forms enabling you to document store and analyze individual readings or series of measurements, overlay logged data to find cause and effect relationships, or turn your data into meaningful graphs and tables for a professional report
The 287/FVF combo kit gives you a practical & affordable approach to documenting circuit design performance

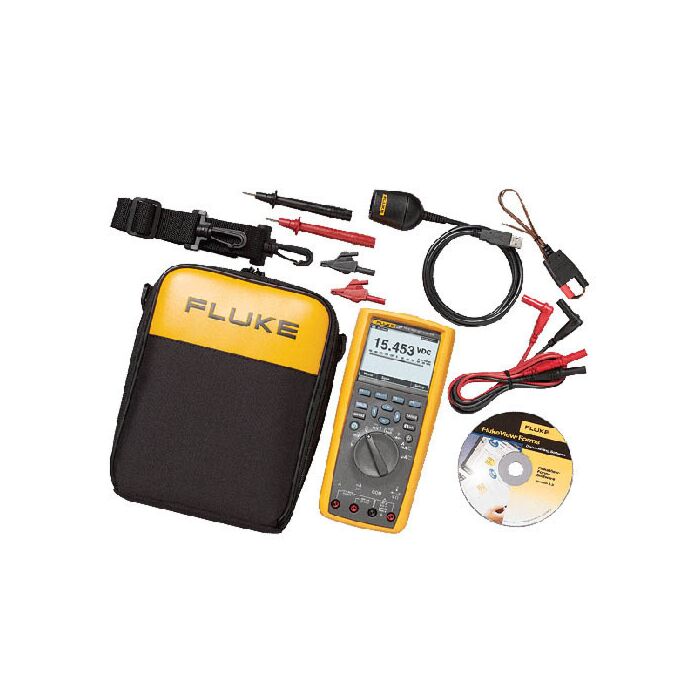

Each Unit Includes

Fluke-287 True-RMS Electronics Logging Multimeter with TrendCapture
FlukeView Forms Software and cable
80BK-A thermocouple Probe
CAT III 1000 V 10 A Modular test leads (red, black)
CAT III 1000 V 10 A Modular test probes (red, black)
CAT II 300 V 5 A Alligator Clips (red, black)
Soft case for meter protection and accessory storage
Limited lifetime warranty

Webinars

Electrical Safety Measurement Webinar with Fluke

Technical Resources

Fluke 287 FlukeView Forms Combo Kit Datasheet
Application - Troubleshooting Power Harmonics
Application - Who Sets the Rules for Electrical Testing and Safety
Brochure - Fluke DMM Selection Guide
Application - ABCs of Multimeter Safety: Multimeter Safety and You
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - User's Manual
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - User's Manual Supplement
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Calibration Manual
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Calibration Manual Supplement
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - CE Declaration of Conformity
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Statement of Memory Volatility
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Quick Reference Guide
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Safety Sheet
Fluke 289 / 287 True-RMS Industrial Logging Multimeter - Safety Sheet Supplement
Application - Event Recording (or Logging) with a Fluke 287/289 Digital Multimeter
Application - Fluke Connect
Fluke - Electrical Safety Measurement Webinar

Specifications

Specifications
DC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.03%
AC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.4% (True-RMS)
DC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.05%
AC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.6% (True-RMS)
Temperature (excluding probe)	Range / resolution	-200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
	Basic accuracy	1.00%
Resistance	Range / resolution	500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
	Basic accuracy	0.05%
Capacitance	Range / resolution	1.000 n, 10.00 nF, 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
	Basic accuracy	1.00%
Frequency	Range / resolution	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
	Basic accuracy	0.01%
Connectivity	Optional infrared connector via Fluke ir3000 FC
General Specifications
Maximum voltage between any terminal and earth ground	1000 V
Battery type	6 AA alkaline batteries, NEDA 15A IECLR6
Battery life	100 hours minimum, 200 hours in logging mode
Temperature	Operating	-20°C to 55°C
	Storage	-40°C to 60°C
Relative humidity	0 to 90% (0 t 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
Electromagnetic compatibility	EMC EN61326–1
Vibration	Random vibration per MIL-PRF-28800F Class 2
Shock	1 meter drop per IEC/EN 61010–1 3rd Edition
Size (H x W x L)	22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)
Weight	870.9 g (28 oz)
Multiple on screen displays	Yes
True-RMS AC bandwidth	100 kHz
dBV/dBm	Yes
DC mV resolution	1 μV
Megohm range	Up to 500 MΩ
Conductance	50.00 nS
Continuity beeper	Yes
Battery/fuse access	Yes/Yes
Elapse time clock	Yes
Time of day clock	Yes
Min-max-avg	Yes
Peak	250 μs
Duty cycle	0.01% to 99.99%
Pulse width	0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Hold	Yes
Isolated optical interface	Yes
Auto/touch hold	Yes
Reading memory	Yes
Log to PC	Yes
Interval/event logging	Yes
Logging memory	Up to 10,000 readings
Wireless connectivity (optional)	Yes
