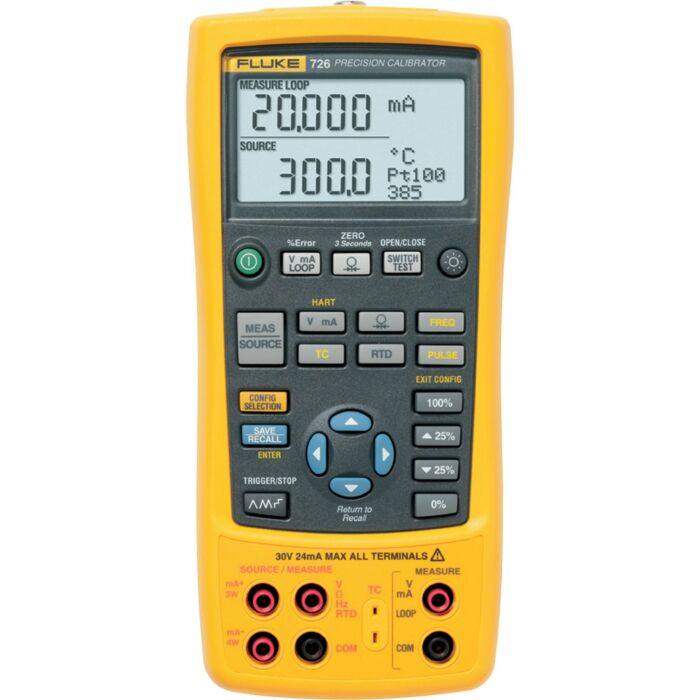

Fluke 726 L VIP Kit - Multifunction Calibrator with FREE TOOLS!

Order # 726E-L-VIP | Mfg # 2452080

FREE TOOLS!

$7,552.99

Ships in 3-5 days

SAVE OVER $255! FREE Tools include:

Fluke Tpak Tool Hanger
Soft Carrying Case
J,K,T,E Mini T/C Lead Set
Pack of 128 Self Laminating Green Calibration Labels

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

The Fluke 726 Precision Multifunction Process Calibrator is designed specifically for the Process industry with broad workload coverage, calibration power and unsurpassed accuracy in mind. The 726 measures and sources almost all process parameters and can calibrate almost anything. The 726 will also interpret results without the help of a calculator and store measurement data for later analysis.

Need an intrinsically safe rating in your calibrator? Consider the Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator.

Want documenting and HART communication built into your calibrator? Consider the Fluke 754 Documenting Process Calibrator with HART.

Free Tools Include:

JKTE Mini Plug
Case
TPAK Meter Hanging Kit
Pack of 128 Self Laminating Green Calibration Labels
Leatherman SIDEKICK Super Tool

Product Highlights

More precise measurement and calibration source performance, accuracies of 0.01%.
Memory storage for up to 8 calibration results, return stored calibration data from the field for later analysis
Two separate channels; measure, source and view process signals simultaneously
Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters
Source/simulate volts, mA, thermocouples, RTDs, frequency, and pressure to calibrate transmitters
Measure or source pressure using any of 29 Fluke 700Pxx Pressure Modules (Pressure pump required)
Source mA with simultaneous pressure measurement to conduct valve and I/P tests
Integrated pressure switch test allows you to capture the set, reset and deadband of a switch
Transmitter error% calculation, interpret calibration results without a calculator
Perform fast linearity tests with auto step and auto ramp features
Power transmitters during test using 24 V loop supply and simultaneous mA measurement
Store frequently-used test setups for later use
Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing
HART mode inserts 250 ohm resistor in mA measure and source for compatibility with
HART instrumentation
Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement.
New voltage input protection design for improved reliability
Three-year warranty

Each Unit Includes

TL75 test leads
AC72 test clips
CD user’s manuals (English, French, German, Spanish, Italian, Dutch, Norwegian, Danish, Swedish, Finnish, Portuguese, Korean, Chinese, Japanese)

Technical Resources

Fluke 725 / 726 Multifunction Process Calibrator - Safety Sheet
Fluke 726 Precision Multifunction Process Calibrator - User's Manual
Fluke 726 Precision Multifunction Process Calibrator - User's Manual Supplement
Fluke 725 / 726 Multifunction Process Calibrator - Calibration Manual
Fluke 725 / 726 Multifunction Process Calibrator - Calibration Manual Supplement
Fluke 726 Precision Multifunction Process Calibrator - Technical Data
Application - Using the Fluke 726 and Custom RTD Constants for Precision Temperature Measurement
Fluke 718 / 719 / 724 / 725 / 726 Safety Sheet

Specifications

Measurement Accuracy
Voltage DC	30.000 V	0.01% + 2 mV (upper display)
	20.000 V	0.01% + 2 mV (lower display)
	90.00 mV	0.01% + 10 μV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.01%+ 2 mA
Resistance	0.0 to 4000.0 Ω	± 0.015%
Frequency	2.0 to 1000.0 CPM	0.05% + 0.1 cpm
	1.0 to 1000.0 Hz	0.05% + 0.1 Hz
	1.00 to 15.00 kHz	0.05% + 0.01 kHz
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.01% + 10 μV
	20.000 V	0.01% + 2 mV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (Source)	0.01% + 2 μA
Current DC	24.000 mA (Simulate)	0.01% + 2 μA
Resistance	Range, accuracy (percent of reading + floor) and excitation current	5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA
		5 to 400 Ω, 0.015% + 0.05 Ω, 0.5 to 3 mA
		400 to 1500 Ω, 0.015% + 0.5 Ω, 0.05 to 0.8 mA
		1500 to 4000 Ω, 0.015% + 0.5 Ω, 0.05 to 0.4 mA
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1000.0 Hz	0.05%
	1.0 to 10.0 kHz	0.25%
	10.0 to 15.0 kHz	0.50%
	Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure and source accuracy	Cu10	1.8°C
	NI-120	0.15°C
	PT-100 (385)	0.45°C
	PT-100 (392)	0.35°C
	PT-100 (391-JIS)	0.35°C
	PT-200 (385)	0.95°C
	PT-500 (385)	0.55°C
	PT-1000 (385)	0.35°C
	RTD Resolution	0.01°C (0.01°F)
	Cu10.01 C	0.1°C (0.1°F)
	J	0.4°C
	K	0.5°C
	T	0.4°C
	E	0.4°C
	R	1.4°C
	S	1.4°C
	B	1.4°C
	L	0.45°C
	U	0.45°C
	N	0.6°C
	XK	0.4°C
	BP	1.1°C
	TC Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to +71°C
Operating altitude	3000 m
Safety Specifications
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical and General Specifications
Size	200 x 96 x 47 mm (7.9 x 3.8 x 1.9 in)
Weight	650 g (23 oz)
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessible without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming
