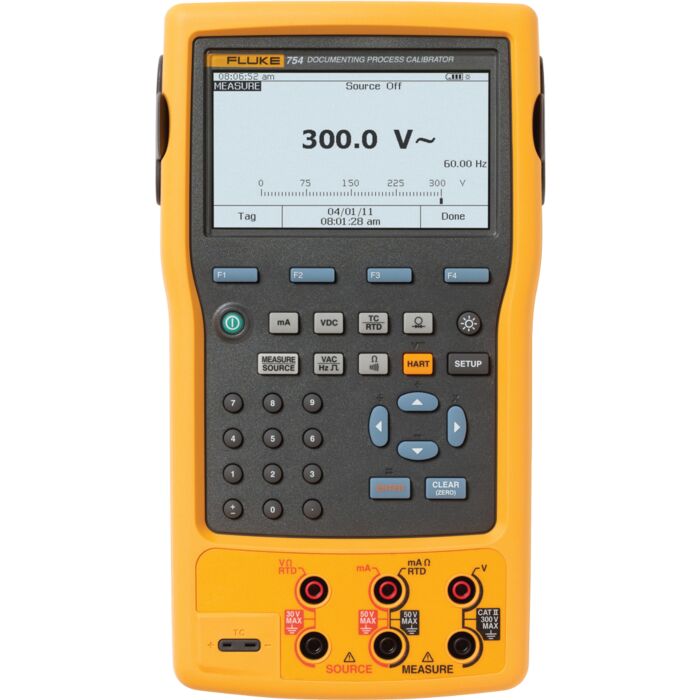

Fluke 754 Documenting Process Calibrator with HART Instrument
Documenting Process Calibrator with HART Instrument

Order #: 754

Mfg #: 3405771

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $12,605.09 Regular Price $14,163.03

Fluke 754 Documenting Process Calibrator with HART Instrument

Documenting Process Calibrator with HART Instrument

Order #: 754

Mfg #: 3405771

Special Price $12,605.09 Regular Price $14,163.03
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available as RENTAL at
Call for price
Shop now
This item is available USED at
$9,798.60
Shop now
SAVE OVER $770! FREE Tools include:
  • Fluke TL175 TwistGuard Test Leads
  • JKTE Mini Plug Set
  • Leatherman SIDEKICK Multi-Tool
  • Fluke BC7240 Battery Charger
  • Fluke BP7240 HZM Li-ion Battery Pack
  • Hard carrying Case
  • Pack of 128 Self Laminating Green Calibration Labels

Fluke 754 Overview

You're going to love what we've done with your calibrator.

The 754 is everything you needed and wished for in the 744 and more! HART communication capability is combined to deliver an integrated communicating calibrator. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.

The 754 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. You'll fall in love with the new improved graphical screen, Li-Ion battery for longer life, USB port and new accessories to complete the package.

For documentation, the 754 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations.

HART Capabilities

The 754 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers most of the communication capabilities of a HART communicator.

Fluke 754 Highlights

  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Power transmitters during test using loop supply with simultaneous mA measurement
  • Measure/source pressure using any of 29 Fluke pressure modules
  • Advanced features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more
  • Includes HART communication for adjusting and testing HART smart transmitters.
  • Includes the new C799 Field soft case
  • Three-year warranty

Each Fluke 754 Includes

  • Three sets of stackable test leads
  • Three sets of TP220 test probes with three sets of "extended tooth" alligator clips
  • Two sets AC280 hook clips
  • BP7240 Li-ion battery pack
  • BC7240 battery charger
  • C799 field soft case
  • USB communication cable
  • Getting started guide
  • Instruction manual on CDROM
  • NIST traceable certificate of calibration
  • DPCTrack™ 2 sample software
  • HART communication cable

Webinars

Automating and Documenting Temperature Calibration Webinar with Fluke Calibration

Differential Pressure Meter Gas Custody Transfer Calibration Webinar with Fluke

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke 750P Series Pressure Modules
    Fluke 750P Series Pressure Modules
    Configure your Fluke 750 Series Pressure Module today!

    Order #: 750P

    Mfg #: 750P

    Availability:
    In stock
    $2,296.75
  2. Transcat 5353C-G
    Transcat 5353C-G
    Calibration Labels-Green, Self-Laminating, 1 3/4x5/8"

    Order #: 5353C-G

    Mfg #: CUSTOM QCC306-GR (QZ0530GR)

    Availability:
    In stock
    Special Price $32.11 Regular Price $33.81
  3. Fluke 700LTP-1 Low Pressure Test Pump, 100PSI (7 BAR)
    Fluke 700LTP-1 Low Pressure Test Pump, 100PSI (7 BAR)
    Low Pressure Test Pump, 100PSI/7 BAR

    Order #: 700LTP-1

    Mfg #: 2811763

    Availability:
    In stock
    $1,459.27
  4. Fluke 700PMP Hand Pressure Pump, 150 psi, 1000 kPa
    Fluke 700PMP Hand Pressure Pump, 150 psi, 1000 kPa
    Hand Pressure Pump, 150 psi, 1000 kPa

    Order #: 700PMP

    Mfg #: 617131

    Availability:
    In stock
    Special Price $788.30 Regular Price $916.63
  5. Fluke 700PTP-1 Pneumatic Test Pump, -13 to 600PSI
    Fluke 700PTP-1 Pneumatic Test Pump, -13 to 600PSI
    Pneumatic Test Pump, -13 to 600PSI

    Order #: 700PTP-1

    Mfg #: 2811774

    Availability:
    In stock
    $1,440.23
  6. Fluke 700PCK Pressure Module Calibration Kit
    Fluke 700PCK Pressure Module Calibration Kit
    Pressure Module Calibration Kit

    Order #: 700PCK

    Mfg #: 100062

    Availability:
    In stock
    $2,551.35
  7. Fluke 700HTH-1
    Fluke 700HTH Hydraulic Test Hose
    Hydraulic Test Hose

    Order #: 700HTH-1

    Mfg #: 2811795

    Availability:
    In stock
    Special Price $941.51 Regular Price $1,094.79
  8. Fluke 700PRV-1 Pressure Relief Valve Kit
    Fluke 700PRV-1 Pressure Relief Valve Kit
    Pressure Relief Valve Kit Valve Kit

    Order #: 700PRV-1

    Mfg #: 2811808

    Availability: Ships in 3-4 weeks
    Special Price $1,102.92 Regular Price $1,282.47
  9. Fluke 750 SW DPC/TRACK2 Calibration Management Software
    Fluke 750 SW DPC/TRACK2 Calibration Management Software
    Calibration Management Software

    Order #: 750SW

    Mfg #: 4090343

    Availability: Ships in 1-2 weeks
    $7,252.87
  10. Fluke C799
    Fluke C799 Soft Field Case Soft Field Case
    Soft Field Case

    Order #: C799

    Mfg #: 4021731

    Availability:
    In stock
    Special Price $250.28 Regular Price $291.03
  11. 700TLK
    Fluke 700TLK Process Test Lead Kit
    Process Test Lead Kit

    Order #: 700TLK

    Mfg #: 3829398

    Availability:
    In stock
    Special Price $250.28 Regular Price $291.03
  12. Fluke 754HCC Smart Instrument Communication Cable
    Fluke 754HCC Smart Instrument Communication Cable
    Smart Instrument Communication Cable

    Order #: 754HCC

    Mfg #: 3829410

    Availability:
    In stock
    Special Price $170.75 Regular Price $198.55
  13. Fluke TL940
    Fluke TL940 Mini-Hook Test Leads
    Mini-Hook Test Leads

    Order #: TL940

    Mfg #: 1616705

    Availability: Ships in 3-4 weeks
    Special Price $50.82 Regular Price $57.11
  14. Fluke 700TC1 T/C Mini Plug Kit
    Fluke 700TC1 T/C Mini Plug Kit
    T/C Mini Plug Kit

    Order #: 700TC1

    Mfg #: 620119

    Availability:
    In stock
    Special Price $170.75 Regular Price $198.55

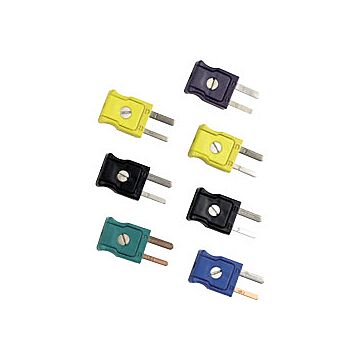

  15. Fluke 700TC2
    Fluke 700TC2 T/C Mini Connector Kit
    T/C Mini Connector Kit

    Order #: 700TC2

    Mfg #: 620127

    Availability:
    In stock
    Special Price $170.75 Regular Price $198.55
  16. Fluke Calibration Drywell Cable Kit
    Fluke Calibration Drywell Cable Kit
    Cable Kit, Hart Drywell Control

    Order #: HART DRYWELL CABLE

    Mfg #: 2111088

    Availability:
    In stock
    Special Price $337.48 Regular Price $359.03

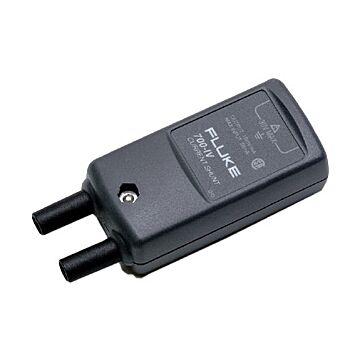

  17. Fluke 700IV Current Shunt
    Fluke 700IV Current Shunt
    Current Shunt

    Order #: 700IV

    Mfg #: 202561

    Availability: Ships in 3-4 weeks
    Special Price $650.28 Regular Price $756.15
  18. Fluke BP7240 HZM Li-ion Battery Pack for Fluke 753 and 754
    Fluke BP7240 HZM Li-ion Battery Pack for Fluke 753 and 754
    HZM Li-ion Battery Pack for Fluke 753 and 754

    Order #: BP7240

    Mfg #: 4022220

    Availability:
    In stock
    Special Price $308.76 Regular Price $359.03
  19. Fluke BC7240
    Fluke BC7240 Battery Charger/Eliminator
    Battery Charger/Eliminator

    Order #: BC7240

    Mfg #: 4022655

    Availability:
    In stock
    Special Price $126.30 Regular Price $146.87
  20. Fluke AC220 SureGrip Alligator Clips
    Fluke AC220 SureGrip Alligator Clips
    SureGrip Alligator Clips

    Order #: AC20

    Mfg #: 1610103

    Availability:
    In stock
    Special Price $76.01 Regular Price $88.39
Measurement Accuracy
 Range/Resolution1 Year2 Years
Voltage DC 100.000 mV 0.02% + 0.005 mV 0.03% + 0.005 mV
3.00000 V 0.02% + 0.00005 V 0.03% + 0.00005 V
30.0000 V 0.02% + 0.0005 V 0.03% + 0.0005 V
300.00 V 0.05% + 0.05 V 0.07% + 0.05 V
Voltage AC 3.000 V (40 Hz to 500 Hz) / 0.001 V 0.5% + 0.002 V 1.0% + 0.004 V
30.00 V (40 Hz to 500 Hz) / 0.01 V 0.5% + 0.02 V 1.0% + 0.04 V
300.0 V (40 Hz to 500 Hz) / 0.1 V 0.5% + 0.2 V 1.0% + 0.2 V
Current DC 30.000 mA 0.01% + 5 uA 0.015% + 7 uA
110.00 mA 0.01% + 20 uA 0.015% + 30 uA
Resistance 10.000 Ω 0.05% + 50 mΩ 0.07% + 70 mΩ
100.00 Ω 0.05% + 50 mΩ 0.07% + 70 mΩ
1.0000 kΩ 0.05% + 500 mΩ 0.07% + 0.5 Ω
10.000 kΩ 0.1% + 10 Ω 0.15% + 15 Ω
Frequency 1.00 to 110.00 Hz / 0.01 Hz   0.05 Hz
110.1 to 1100.0 Hz / 0.1 Hz   0.5 Hz
1.101 to 11.000 kHz / 0.001 kHz   0.005 kHz
11.01 to 50.00 kHz / 0.01 kHz   0.05 kHz
Source Accuracy
 1 Year2 Years
Voltage DC 100.000 mV 0.01% + 0.005 mV 0.015% + 0.005 mV
1.00000 V 0.01% + 0.00005 V 0.015% + 0.0005 V
15.0000 V 0.01% + 0.0005 V 0.015% + 0.0005 V
Current DC 22.000 mA (source) 0.01% + 0.003 mA 0.02% + 0.003 mA
Current sink (simulate) 0.02% + 0.007 mA 0.04% + 0.007 mA
Resistance 10.000 Ω 0.01% + 10 mΩ 0.015% + 15 mΩ
100.00 Ω 0.01% + 20 mΩ 0.015% + 30 mΩ
1.0000 kΩ 0.02% + 0.2 Ω 0.03% + 0.3 Ω
10.000 kΩ 0.02% + 3 Ω 0.03% + 5 Ω
Frequency 0.1 to 10.99 Hz   0.01 Hz
0.01 to 10.99 Hz   0.01 Hz
11.00 to 109.99 Hz   0.1 Hz
110.0 to 1099.9 Hz   0.1 Hz
1.100 to 21.999 kHz   0.002 kHz
22.000 to 50.000 kHz   0.005 kHz
Technical Data

Data log functions Measure functions Voltage, current, resistance, frequency, temperature, pressure
Reading rate 1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length 8000 readings (7980 for 30 or 60 readings/minute)
Ramp functions Source functions Voltage, current, resistance, frequency, temperature
Rate 4 steps/second
Trip detect Continuity or voltage (continuity detection not available when sourcing current)
Loop power function Voltage Selectable, 26 V
Accuracy 10%, 18 V minimum at 22 mA
Maximum current 25 mA, short circuit protected
Maximum input voltage 50 V DC
Step functions Source functions Voltage, current, resistance, frequency, temperature
Manual step Selectable step, change with arrow buttons
Autostep Fully programmable for function, start delay, stepvalue, time per step, repeat
Environmental Specifications

Operating temperature -10°C to +50°C
Storage temperature -20°C to +60°C
Dust/water resistance Meets IP52, IEC 529
Operating altitude 3000 m above mean sea level (9842 ft)
Safety Specifications

Agency approvals CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Mechanical and General Specifications

Size 136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight 1.2 kg (2.7 lb)
Batteries Internal Battery Pack Li-ion: 7.2V,4400mAh, 30 Wh
Battery life >8 hours typical
Battery replacement Replace without opening calibrator; no tools required
Side port connections Pressure module connector
USB Connector to interface to your PC
Digital instrument (HART) connector
Connection for optional battery charger/eliminator
Data storage capacity 1 week of calibration procedures results
90 day specifications The standard specification interval for the 750 Seriesare 1 and 2 years.
Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.
Temperature, Resistance Temperature Detectors

Degrees or % of reading - Type (α) Range °C Measure °C1
  1 year 2 year
100 Ω Pt (385) -200 to 100 0.07°C 0.14°C
100 to 800 0.02% + 0.05°C 0.04% + 0.10°C
200 Ω Pt (385) -200 to 100 0.07°C 0.14°C
100 to 630 0.02% + 0.05°C 0.04% + 0.10°C
500 Ω Pt (385) -200 to 100 0.07°C 0.14°C
100 to 630 0.02% + 0.05°C 0.04% + 0.10°C
1000 Ω Pt (385) -200 to 100 0.07°C 0.14°C
100 to 630 0.02% + 0.05°C 0.04% + 0.10°C
100 Ω Pt (3916) -200 to 100 0.07°C 0.14°C
100 to 630 0.02% + 0.05°C 0.04% + 0.10°C
100 Ω Pt (3926) -200 to 100 0.08°C 0.16°C
100 to 630 0.02% + 0.06°C 0.04% + 0.12°C
10 Ω Cu (427) -100 to 260 0.2°C 0.4°C
120 Ω Ni (672) -80 to 260 0.1°C 0.2°C
Source current Source °C Allowable current2
  1 year 2 year
1 mA 0.05°C 0.10°C 0.1 mA to 10 mA
0.0125% + 0.04°C 0.025% + 0.08°C
500 μA 0.06°C 0.12°C 0.1 mA to 1 mA
0.017% + 0.05°C 0.034% + 0.10°C
250 μA 0.06°C 0.12°C 0.1 mA to 1 mA
0.017% + 0.05°C 0.034% + 0.10°C
150 μA 0.06 C 0.12 C 0.1 mA to 1 mA
0.017% + 0.05°C 0.034% + 0.10°C
1 mA 0.05°C 0.10°C 0.1 mA to 10 mA
0.0125% + 0.04°C 0.025% + 0.08°C
1 mA 0.05°C 0.10°C 0.1 mA to 10 mA
0.0125% + 0.04°C 0.025% + 0.08°C
3 mA 0.2°C 0.4°C 0.1 mA to 10 mA
1 mA 0.04°C 0.08°C 0.1 mA to 10 mA
1. For two and three-wire RTD measurements, add 0.4°C to the specifications.
2. Supports pulsed transmitters and PLCs with pulse times as short as 1 ms
Temperature, Thermocouples

Type Source °C Measure °C Source °C
    1 year 2 years 1 year 2 years
E -250 to -200 1.3 2 0.6 0.9
-200 to -100 0.5 0.8 0.3 0.4
-100 to 600 0.3 0.4 0.3 0.4
600 to 1000 0.4 0.6 0.2 0.3
N -200 to -100 1.0 1.5 0.6 0.9
-100 to 900 0.5 0.8 0.5 0.8
900 to 1300 0.6 0.9 0.3 0.4
J -210 to -100 0.6 0.9 0.3 0.4
-100 to 800 0.3 0.4 0.2 0.3
800 to 1200 0.5 0.8 0.3 0.3
K -200 to -100 0.7 1 0.4 0.6
-100 to 400 0.3 0.4 0.3 0.4
400 to 1200 0.5 0.8 0.3 0.4
1200 to 1372 0.7 1 0.3 0.4
T -250 to -200 1.7 2.5 0.9 1.4
-200 to 0 0.6 0.9 0.4 0.6
0 to 400 0.3 0.4 0.3 0.4
B 600 to 800 1.3 2 1 1.5
800 to 1000 1 1.5 0.8 1.2
1000 to 1820 0.9 1.3 0.8 1.2
R -20 to 0 2.3 2.8 1.2 1.8
0 to 100 1.5 2.2 1.1 1.7
100 to 1767 1 1.5 0.9 1.4
S -20 to 0 2.3 2.8 1.2 1.8
0 to 200 1.5 2.1 1.1 1.7
200 to 1400 0.9 1.4 0.9 1.4
1400 to 1767 1.1 1.7 1 1.5
C 0 to 800 0.6 0.9 0.6 0.9
800 to 1200 0.8 1.2 0.7 1
1200 to 1800 1.1 1.6 0.9 1.4
1800 to 2316 2 3 1.3 2
L -200 to -100 0.6 0.9 0.3 0.4
-100 to 800 0.3 0.4 0.2 0.3
800 to 900 0.5 0.8 0.2 0.3
U -200 to 0 0.6 0.9 0.4 0.6
0 to 600 0.3 0.4 0.3 0.4
BP 0 to 1000 1 1.5 0.4 0.6
1000 to 2000 1.6 2.4 0.6 0.9
2000 to 2500 2 3 0.8 1.2
XK -200 to 300 0.2 0.3 0.2 0.5
300 to 800 0.4 0.6 0.3 0.6
All products in this series
