Product Highlights

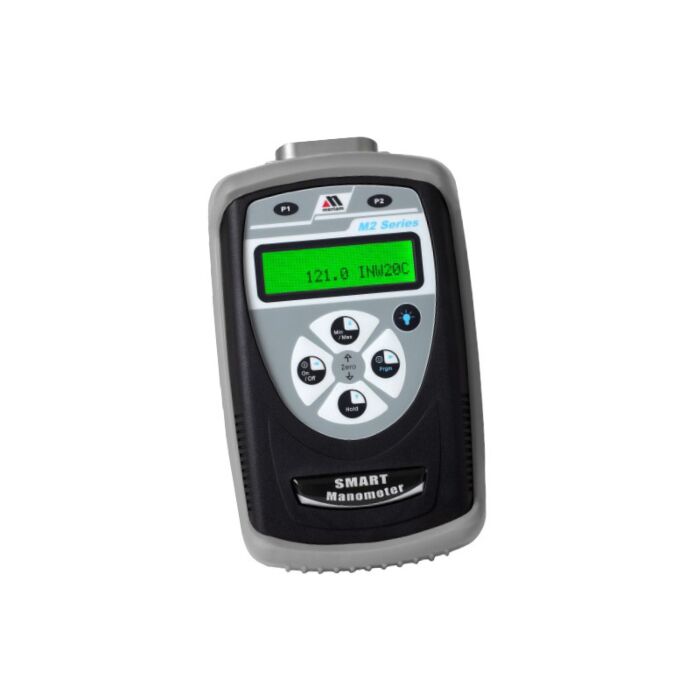

Meriam's M200LS Lab Standard Smart Manometer offers the best available pressure measurement accuracy in a portable, handheld format. The NIST traceable accuracy is typically ±0.01% of F.S. within the temperature range of 15 to 30° C and ±0.025% F.S. between -20 to 15° C and 30 to 50° C. Pressure ranges from 28" H2O F.S. to 500 PSIG F.S. are available.
M2 pressure sensors are available to measure gauge, differential, absolute or vacuum pressure. The display can read out in any of eleven pressure units or can be linearly scaled for special user units. An adjustable damping feature minimizes the effects of pulsating pressures.
- 14 ounce (6.5" X 3.6" X 2.25") polycarbonate, permanently dissipative, ESD protection
- Sealed membrane type keypad with 5 dome contact style buttons
- 5 significant digit LCD (0.25" high) 2 line x 16 alphanumeric characters with contrast adjustment
- Two stage backlight with visual overrange indication
- 4 each AA batteries providing over 100 hours of continuous use
- Connections /8" female NPT, 316L SS
