Product Highlights
- Portable, rugged fault locating system
- HV insulation testing to 20 kV
- Bum up to 115 mA
- 8/16 kV, 1500 Joules surge output
- Arc reflection method
- Arc reflection plus
- Differential arc reflection
- Impulse current (current impulse)
- Integrated large screen color TOR
- Optional onboard inverter

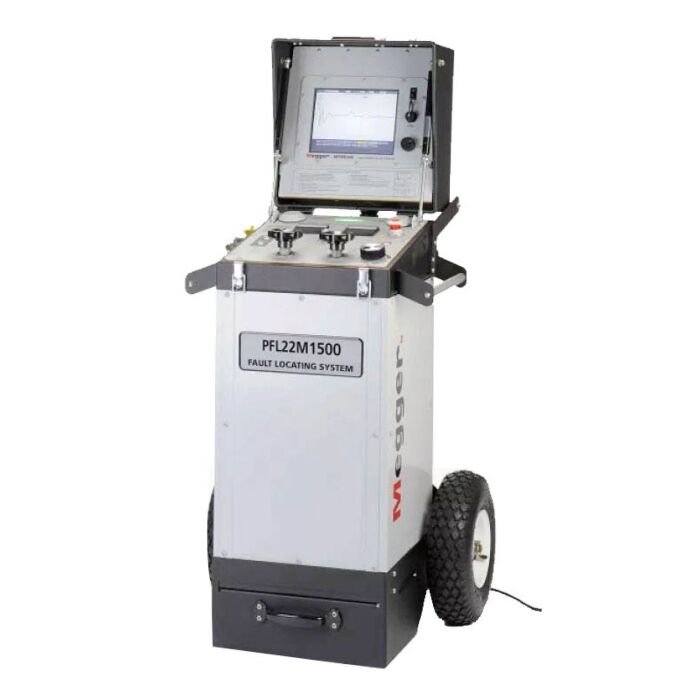

The PFL22M1500 Power Cable Fault locator Is designed to provide quick, effective, accurate and safe fault location, thereby reducing system outages and minutes lost. The instrument comes in a rugged yet portable enclosure. Its IP64 rating makes i suitable for use in even environmentally hostile conditions.
All systems offer the facility to undertake cable testing: cable and fault diagnosis, pre-location of cable faults, fault conditioning, and pinpoint fault location using acoustic methods.
- Innovative MTDRl 00 mounted in the lid features:
- Single knob Qog-dial) control
- Large easy-to-view color (XGA) display
- Auto ranging
- Cable library
- Multiple fault locating techniques:
- Pre-location
- Pulse echo
- Arc reflection
- Arc reflection plus
- Differential arc reflection
- Impulse current
- Pinpoint
- High-voltage module
- 2-range
- Safety interlocks
- HV on indicator
