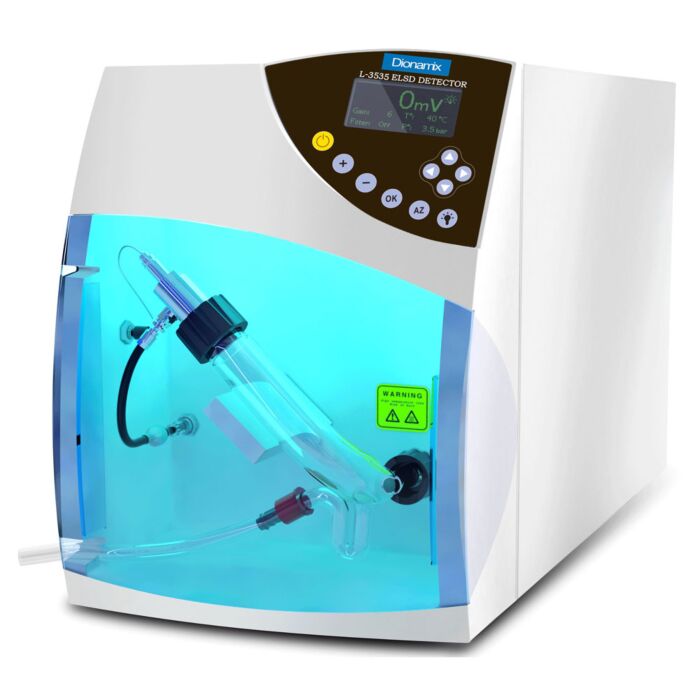

Dionamix L-3535
Evaporative Light Scattering Detector

Order #: L-3535

Mfg #: 3021003535

Questions about availability or need help? Contact Us:

(800) 633-0561
$33,033.00

Dionamix L-3535

Evaporative Light Scattering Detector

Order #: L-3535

Mfg #: 3021003535

$33,033.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The L-3535 ELSD is used to detect the components of eluted solutions in high performance liquid chromatography systems (HPLC).

  • Integrates with Dionamix L-3000 HPLC and Ultrachrom Analytical Software Solution
  • Eluted solution flow rate 100µL / min to 2.5mL / min
  • Low temperature mobile phase solution evaporation

Evaporative light scattering detector technology is widely used to detect any substance that is less volatile than the mobile phase. Unlike other types of detectors, such as UV detectors, it does not depend on the absorption of radiation and is not affected by the absorption characteristics of solvents. Therefore, a solvent having ultraviolet radiation absorption can be used. Since the solvent evaporates completely, gradient operations can be performed to optimize the separation.

You can control the detector from the front panel or from your computer's chromatography software. The detector consists of an atomizing tank, an evaporation tube and a detection chamber. The evaporator tube is heated during operation to evaporate the solvent.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Dionamix 2010003743
    Dionamix 2010003743
    C-type inlet check valve sleeve L-32XX Pumps

    Order #: 2010003743

    Mfg #: 2010003743

    Availability: Ships in 3-4 weeks
    $68.60
Specification
Light Source Blue LED 470 nm, with Elapsed Time Counter
Temperature Range Ambient to 100°C
Eluent Flow Rate 0.1ml/min to 2.5ml/min
Gas Consumption ?3.0L/min
Atomizing gas (?5L/min), 2Bar~4.5Bar
General Specifications L-3535
Computer Interface USB, RS-232
Weight 15 kg (33lbs)
Dimensions (LxWxH) 530mm (21 ") L x 250mm (10") W x 330mm (13 ") H
Power Voltage 100-240V
Power Frequency 50-60Hz
