Process Connection Style: T32 : Tri-Clamp, 1.5 in 316L SST
M4 : LCD Display with Local Operator Interface
Tariff fees or manufacture imposed surcharges may be applicable.
Overview

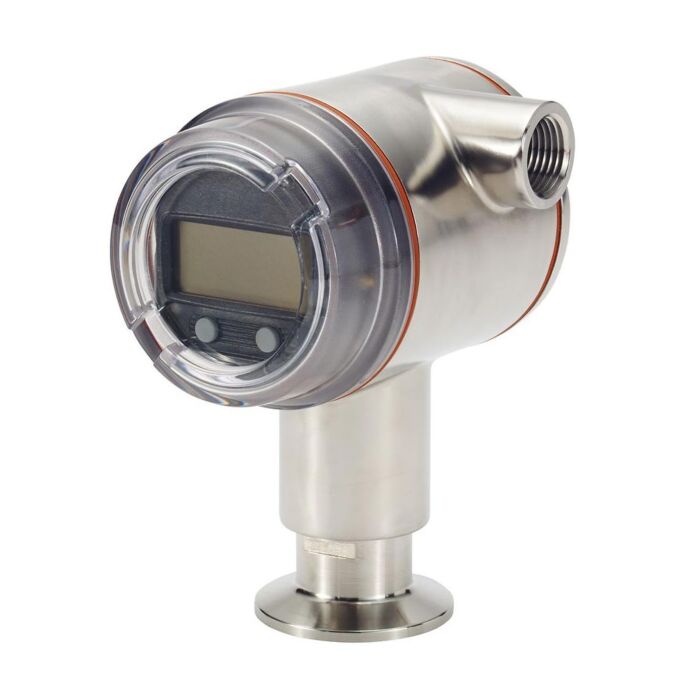

The Rosemount 3051HT Hygienic Pressure Transmitter is a best-in-class transmitter solution for gage and absolute measurements in the pharmaceutical and food and beverage industries. Built with industry standard process connections, this transmitter connects to sanitary fittings without special mounting hardware. This device meets 3-A, EHEDG, and ASME-BPE industry standards and features a polished stainless steel housing option.
Transmitter Type: G : Gage Pressure
Performance: B : 0.075% span accuracy and 3-year stability
Pressure Range: 2 : -14.7 to 150 psi (-1.01 to 10.3 bar)
Transmitter Output: A : 4-20 mA with Digital Signal Based on HART Protocol
Process Connection Style: T32 : Tri-Clamp, 1.5 in 316L SST
M4 : LCD Display with Local Operator Interface
Offers best-in-class performance of 0.065% of span, 100:1 rangedown, and 5-year stability, with batch repeatability up to +/-0.02% upper range limit for 60 batches
Polished stainless steel housing is free of voids and crevices to ensure easy cleaning and withstand washdown conditions (IP66/68 rated) for long term performance and durability
Connects to various industry standard sanitary fittings including Tri-Clamp, Varivent, and DIN 11851 connection styles, see full specs for complete list of options
Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations
Bluetooth wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools
Meets 3-A, EHEDG and ASME-BPE standards to meet industry-specific requirements
