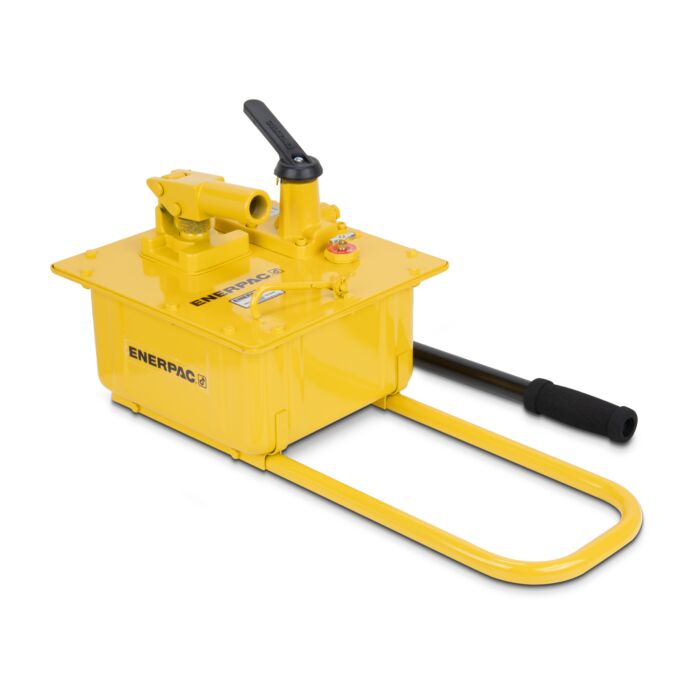

Enerpac P462 ULTIMA Steel HydraulicHand Pump, Two-speed, 453in3, Usable Oil
Order #
P462
|
Mfg #
P462
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
- Reduced handle effort and ergonomic grip for less operator fatigue
- Vent free reservoir eliminates spills
- Quick grip handle allows for easy transport
- Integral reservoir over-pressurization protection
Specifications
| Maximum Operating Pressure (psi) |
10,000 |
| Pressure Rating (psi) 1st Stage |
200 |
| Pressure Rating (psi) 2nd Stage |
10,000 |
| Cylinder Compatability |
Single-acting |
| Pump Type |
Two Speed |
| Reservoir Capacity (in3) |
453 |
| Usable Oil Capacity (in3) |
453 |
| Maximum Flow at Rated Pressure |
.29 in3/stroke |
| Oil Displacement per Stroke (in3) 1st Stage |
7.69 |
| Oil Displacement per Stroke (in3) 2nd Stage |
0.29 |
| Maximum Handle Effort (lbs) |
110 |
| Piston Stroke (in) |
1.5 |
| Valve Operation |
Manual |
| Power Source |
Manual |
| Weight (lbs) |
61 |
