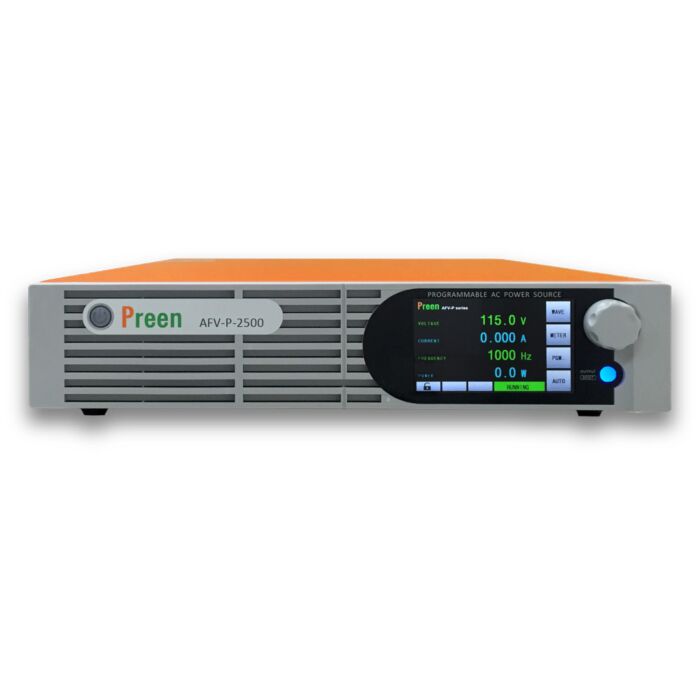

Preen Power AFV-P-2500B
Rack mt programmable AC power source 2500VA, 15-1000Hz

Order #: AFV-P-2500B

Mfg #: AFV-P-2500B

Questions about availability or need help? Contact Us:

(800) 633-0561
$6,734.00

Preen Power AFV-P-2500B

Rack mt programmable AC power source 2500VA, 15-1000Hz

Order #: AFV-P-2500B

Mfg #: AFV-P-2500B

$6,734.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

2500VA, 0~310Vrms, 40~500Hz

Preen's AFV-P Series is a programmable AC power source with DC output and precision measurement. This compact power source provides clean power with THD less than 0.3% at 50/60 Hz and it delivers output voltage of 0-310 V and frequency of 40-500 Hz (opt. 15-1000 Hz). It is ideal for commercial, defense and aerospace test applications from design verification, quality assurance, ATE to mass production. AFV-P series comprise measurement features of rms voltage, rms current, true power, apparent power, power factor, crest factor, reactive power and etc. Its 5" touch screen with rotary knob allows quick adjustments and configurations of voltage, current and frequency. Total 1200 test steps in 50 built-in memories and transient generation functions allow simulations of voltage variations, surges, drops and frequency disturbances. Users can set up starting and ending phase angle from 0 - 360 degrees and they can also remotely control AFV-P via standard interfaces. Free control software and LabVIEW driver are available for easy programming and remote control.

  • Programmable AC Source 2500VA/0-310VAC/40-500Hz
  • AC Source with DC output
  • 600VA to 5kVA only in 2U or 4U
  • Low Distortion: THD ≤ 0.3-0.8%
  • Power Line Simulations: Step & Ramp Features
  • Fast Response Time: ≤ 300µs
  • Transient Generation for Disturbance Tests
  • Complete Remote Interface: USB/RS232/RS485/Ethernet/Optional GPIB
  • User-friendly Control Software

Optional Selections:

Accessories
  • GPIB Interface Board
  • Analog Interface Board
  • RS232 Cable (1.8m/female to male)
  • Input Power Cord (30m/5.5m2/20A; 30m/14mm2/40A)
  • 0-600 High Voltage Module
  • 150% Overload Capability for 1 Second

Specifications:

Input
  • Single Phase
  • Voltage: 196-264VAC or 175-235VAC
  • Frequency: 47 - 63 Hz (opt. 400Hz)
  • Max Current: 20A
Output
  • Power: VA: 2500VA; W: 2000 W
  • Phase: 1Ø / 2 Wire + G
  • Voltage Ranges: 0 - 155Vrms / 0 - 310Vrms, user selectable
  • Voltage Resolution: 0.1Vrms
  • Frequency: 40-500Hz
  • Frequency Resolution: 0.1Hz, 1Hz at >100Hz
  • Max. Current (RMS): 20A / 10A
  • Max. Current (Peak): 60A / 30A
  • Total Harmonic Distortion (THD): ≤ 0.3% at 40-100Hz, ≤ 0.5% at 101-500Hz
  • Line Regulation ± 0.1V
  • Load Regulation: ≤ 0.07% F.S. (Resistive Load)
  • Response Time: ≤ 300µs
  • Crest Factor: ≤ 3
DC Output
  • Power: 1250W
  • Voltage Ranges: 0 - 210V / 0
