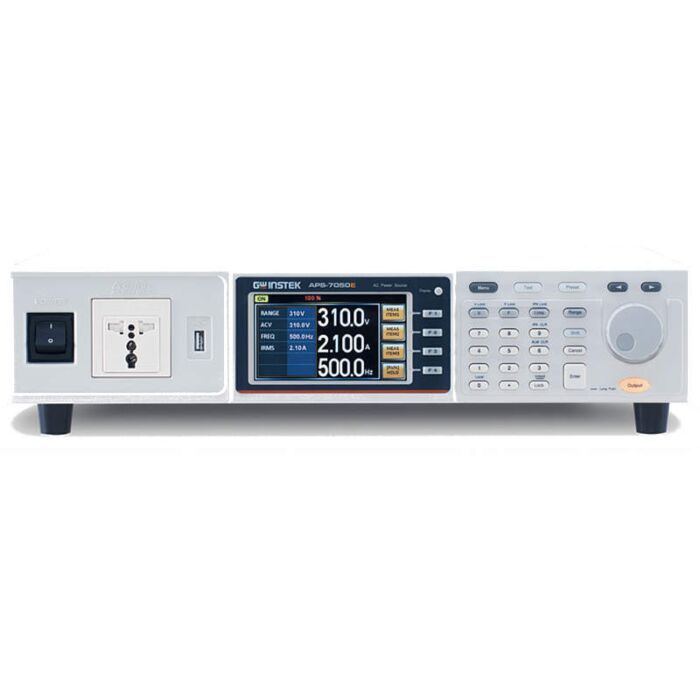

GW Instek APS-7050E
Linear AC Power Source 301Vrms,4.2A/2.1A rms,500VA

Order #: APS-7050E

Mfg #: APS-7050E

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,426.20

GW Instek APS-7050E

Linear AC Power Source 301Vrms,4.2A/2.1A rms,500VA

Order #: APS-7050E

Mfg #: APS-7050E

$2,426.20
Availability:
In stock

Product Highlights

The APS-7000E series linear AC power supply is 2U height and the output frequency range of the series is 45~500Hz. The maximum rated output for APS-7050E is 500VA, 310Vrms, 4.2Arms; and APS-7100E is 1000VA, 310Vrms, 8.4Arms. The APS-7000E series comprises six measurement and test functions (Vrms, Irms, F, Ipk, W, PF), and provides user interface similar to that of AC Power Meter. The APS-7000E series, via switching many sets of current levels to increase small current measurement resolution, is ideal for the LED industry and standby mode power consumption test. To meet the test criteria of line voltage fluctuation often seen in consumer electronics, the APS-7000E series not only supplies a stable AC source, but also features Test mode to handle special purpose or abnormal voltage and frequency. Test mode features ten sets of memory to simulate power outage, voltage increase, and voltage drop. The series is ideal for users to produce grid power transient waveform to verify electronic product operation under adverse conditions.

  • 4.3inch TFT LCD display
  • Output capacity of 500VA, 310Vrms, 4.2/2.1Arms
  • Output frequency setting range from 45Hz to 500Hz
  • 88mm(2U) case height
  • Measurement function comprises voltage, current, power, current (peak), frequency, power factor
  • 115/230VAC ±15% AC power source
  • OCP, OPP, OHP and alarm protection
  • Dimension is 430mm x 88mm x 400mm and weight is 24Kg
