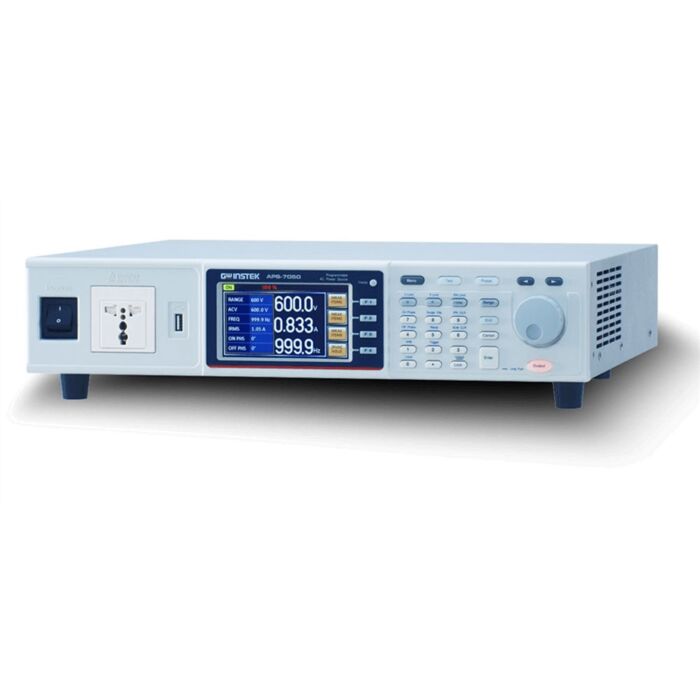

GW Instek APS-7050
Programmable AC Power Source 500VA

Order #: APS-7050

Mfg #: APS-7050

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,649.80

GW Instek APS-7050

Programmable AC Power Source 500VA

Order #: APS-7050

Mfg #: APS-7050

$3,649.80

APS-7000 is a programmable linear AC power supply with the height of 2U and its output frequency range is 45~500Hz. The maximum rated output for APS-7050 is 500VA, 310Vrms, 4.2Arms and APS-7100 is 1000VA, 310Vrms, 8.4Arms. The optional collocation can be extended to the maximum output voltage of 600Vrms and maximum output frequency of 999.9Hz. The APS-7000 series comprises nine measurement and test functions (Vrms, Irms, F, Ipk, W, VA, PF, Ipk hold, CF), and provides user interface similar to that of AC Power Meter. The APS-7000 series, via switching many sets of current levels to increase small current measurement resolution, is ideal for the LED industry and standby mode power consumption test. To meet the test criteria of line voltage fluctuation often seen in consumer electronics, APS-7000 series not only supply a stable source of AC, they also features five methods to cope with special purpose or abnormal voltage, frequency, and phase; ten sets of the Simulate mode simulate power outage, voltage increase, and voltage drop; ten sets of the Sequence mode allow users to define parameters and produce sine wave by editing steps; ten sets of the Program mode can edit AC waveform output and define the ceiling and floor level of measurement items for different DUT; Ramp Control allows users to set the variation speed for output voltage rise and fall; Surge/Dip Control simulates DUT’s input power producing a Surge or Dip voltage overlapping with output voltage waveform at a specific time.

Availability: Ships in 3-4 weeks

Product Highlights

  • 4.3 inch TFT-LCD Display, Only 88mm(2U) case height
  • Output Capacity: APS-7050(500VA), APS-7100 (1000VA)
  • Arbitrary Waveform Function
  • Surge/ Dip control for output artificial surges or dips in voltage to a DUT
  • Measurement function comprises Voltage, Current, Power, Apparent Power, Current(peak), IPKH, Frequency, Power Factor, Crest Factor
  • 10 sets of the Sequence mode, Simulate mode, and Programming mode
  • 10 sets of Preset allow users to store ten settings
  • Support Sequence, Simulate, and Program to automatically execute output after the equipment power is on
  • Support SCPI Emulation, LabVIEW Driver
  • Standard interface: USB Host, LAN
  • Support remoter control: Sync Output, Program mode signal output, Trigger In/Out, Output on/off
  • Option interface: GPIB (APS-001);RS232/USB CDC (APS-002)

Each Unit Includes

  • CD ROM (User Manual, Programming Manual)
  • Power cord for UL/CSA
  • Power cord for PSE
  • Mains terminal cover set
  • Test leads: 1x red, 1x black
