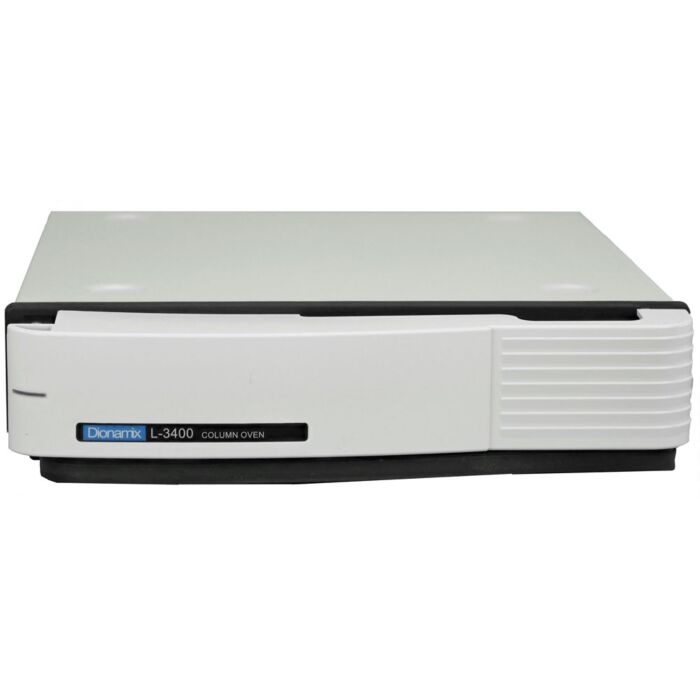

Dionamix L-3400 Temperature controlled column chamber

Overview

Product Highlights

Precise mobile phase temperature control
Improved retention time repeatability

The L-3400 Column oven is designed to accurately control mobile phase temperatures using semiconductor heating and precision temperature control algorithm. Regulating the mobile phase temperatures reduces effect of any temperature variation has on the column and elution, producing more accurate results.

Technical Resources

Dionamix HPLC Brochure
Dionamix HPLC Cannabis Test Application Note

Specifications

	Specification
Temperature range	Room temperature +5°C to 70°C
Temperature Stability	±0.1°C
Temperature Accuracy	±1°C
Column Capacity	250 mm
Temperature Rising/ Falling Speed	Rising Speed: ≥ 2°C/min (40°C to 60 °C)	Falling Speed: ≥ 1.5°C/min (60°C to 40 °C)
Temperature Rising/ Falling Speed		Specification
Weight	7.6 kg (16.75 lbs)
Dimension (LxWxH)	464 x 370 x 90 mm18.3 x 14.6 x 3.6 inches
Voltage	110 VAC rms - 240 VAC rms
Frequency	50 Hz - 60 Hz
Power	170 W max
Operating Temperature	15°C - 35°C 59°F - 95°F
Operating Humidity	20% RH - 80% RH
