Overview
Product Highlights

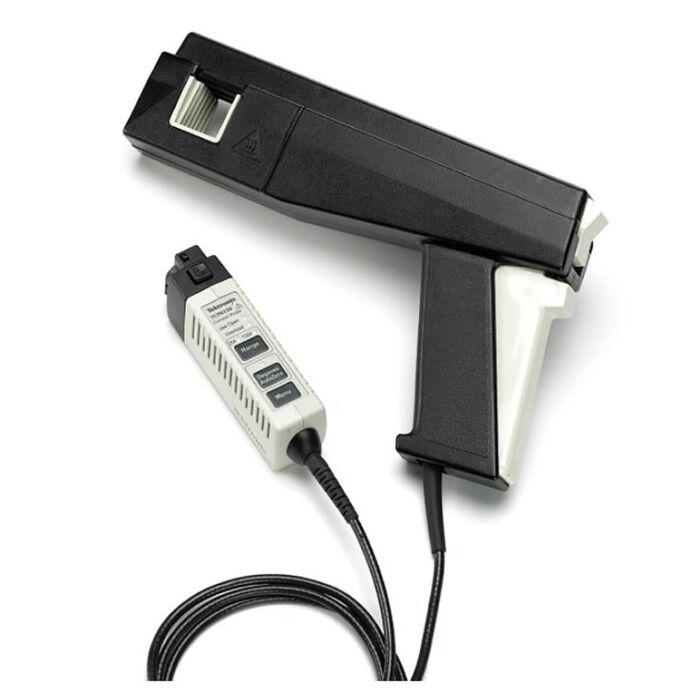

The TCP0150 is a high performance and easy-to-use 150 A AC/DC current probe designed for use and direct connection to the TekVPI™ probe interface.Key performance specifications
DC to 20 MHz bandwidth
150 ARMS maximum current capability
500 a peak pulse current capability
High accuracy with typically less than 1% DC gain error
Accurately measures current levels as low as 5 mA
Key features
Easy-to-Use and accurate AC/DC current measurements
Connects directly to oscilloscopes with the TekVPI™ probe interface
Low noise and DC drift
Provides automatic units scaling and readout on the oscilloscope's display
Remote GPIB/USB probe control through the oscilloscope
Split-core probe head construction allows easy connection to conductors
Easy to degauss and autozero
Setup controls and probe status and diagnostic indicators are provided on both the probe hardware and through an Easy-to-Access scope UI display menu
