Order #: MSO58 5-BW-1000-RENT2
Mfg #: MSO58 5-BW-1000

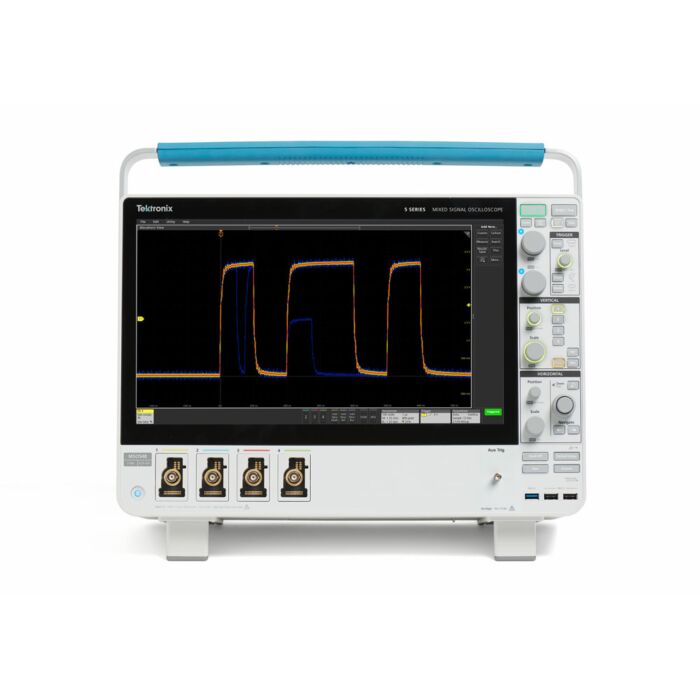

Tektronix MSO58 5-BW-1000 for Rent, 5 Series MSO Oscilloscope, 1GHz, 8 FlexChannels, 6.25 GS/s
Order #: MSO58 5-BW-1000-RENT2
Mfg #: MSO58 5-BW-1000
Product Highlights
Installed Option; 1 GHz Bandwidth
Insightful measurements
See signal details with high-resolution 12-bit analog-to-digital converters. Change your point of view whenever you wish with multi-channel spectrum analysis, measurement statistics, tables and trend plots.
- 12-bit resolution at 1.25 GHz; 16-bit resolution at 50 MHz
- Built-in DDCs enable multi-channel, synchronized spectrum analysis
- Results tables, measurement statistics, and trend plot views
Advanced solutions
The 5 Series adapts to suit your needs with a wide range of application-specific measurements. Add advanced analysis packages individually or install application bundles to address more diverse workloads.
- Support for over 25 serial protocols covering the most common interfaces
- Advanced single-phase and three-phase power analysis packages
- Measurement tools for signal integrity and power integrity
- Optional Windows® operating system lets you run PC software
More ways to see more signals
Versatile inputs and advanced probing technology let you see more.
- Up to 8 FlexChannel™ inputs for up to 8 analog or 64 digital signals, plus an external trigger input
- Includes 500 MHz or 1 GHz probes with just 3.9 pF input capacitance
- TekVPI probe interface supports a wide range of active, differential, isolated and current probes
Work and collaborate almost anywhere
Capture data outside the lab and collaborate easily with engineers on the next bench or in the next time-zone.
- Using just a web browser, connect and control the scope within your own network
- Analyze data on or off the scope with TekScope™ PC analysis software that works just like the scope
- Optional TekDrive one-button cloud storage facilitates record-keeping and collaboration
Each Unit Includes
- One low capacitance 10X passive probe for each input channel
- 350 MHz or 500 MHz models include TPP0500B 500 MHz probes
- 1 GHz or 2 GHz models include TPP1000 1 GHz probes
- Probe accessory kit
- Installation and safety manual in English, Japanese, and Simplified Chinese (not shown)
- Front cover with integrated accessory pouch
- Mouse
- Power cord
- Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
- 1 year warranty covering all parts and labor on the instrument and included probes
Input Channels | 4,6 or 8 FlexChannel inputs. |
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP058 probe | |
Auxiliary trigger input | |
Bandwidth | 350 MHz, 500 MHz, 1 GHz, 2 GHz |
Sample Rate | 6.25 GS/s |
Record Length | Up to 500 Mpoints on all analog/digital channels |
Internal Data Storage | 250 GB removable SSD |
Protocol Decode | Over 25 protocols available |
Signal Generator | 13 standard waveform types, plus arbitrary |
100 MHz maximum frequency | |
Digital Voltmeter | 4 digit |
Trigger Frequency Counter | 8 digit |
Display | 15.6-inch (385 mm) |
TFT color HD (1920 x 1080) resolution capacitive (multi-touch) touchscreen |
