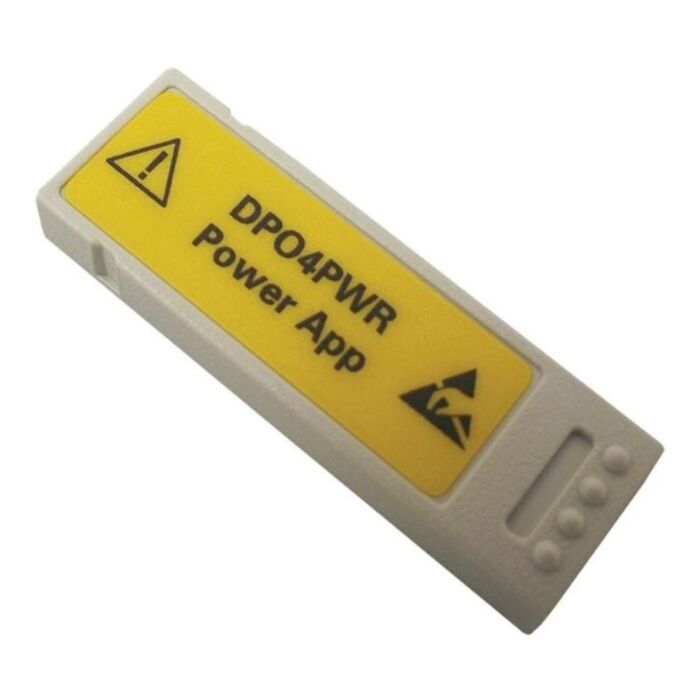

Tektronix DPO4PWR for Rent, Power Analysis Application Module

Product Highlights

With a Power Analysis Application Module installed on an oscilloscope, an embedded designer who rarely deals with power measurements can quickly get the same accurate, repeatable results as a power supply expert.

Key performance specifications

• Power Loss measurements at the switching device for improving switching power supply efficiency
• Automated Ripple measurement setup eliminates manual processes
• Automated THD, True Power, Apparent Power, Power Factor, and Crest Factor features eliminate tedious manual calculations

Key features

• Customizable safe operating area mask testing with linear and log scale for reliability testing
• Precompliance testing to the EN61000-3-2 Class A and MIL Standard 1399 Section 300A Standards reduces compliance test time and risk
• Modulation analysis quickly provides accurate active power factor characterization
• Deskew wizard ensures accurate, time-correlated results
• Correct scale factor and unit display while using third-party current probes eliminates manual calculations and human error

Applications

• Power loss measurement at switching device
• Characterization of power semiconductor devices
• Optimal drive characterization of synchronous rectifiers
• Measurement and analysis of ripple and noise
• Precompliance testing to IEC standard EN61000 3-2 Class A, MIL Standard 1399 Section 300A, and up to 400 harmonics
• Debugging active power factor correction circuits
