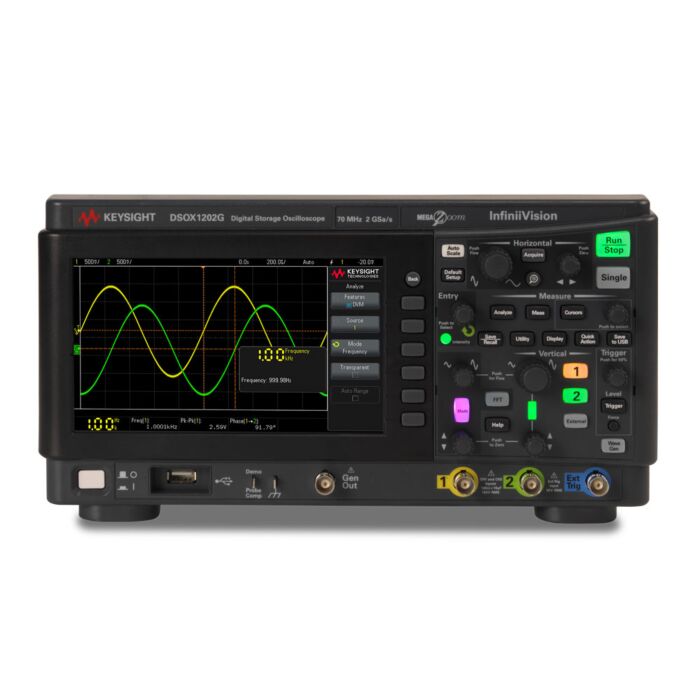

Keysight DSOX1202G InfiniiVision1000X Oscilloscope with WaveGen, 70MHz, 2 Channel, 2GSa/s
InfiniiVision1000X Oscilloscope w/WaveGen, 70MHz, 2Ch, 2GSa/s
Order #: DSOX1202G
Mfg #: DSOX1202G
$1,586.00
Keysight DSOX1202G InfiniiVision1000X Oscilloscope with WaveGen, 70MHz, 2 Channel, 2GSa/s
InfiniiVision1000X Oscilloscope w/WaveGen, 70MHz, 2Ch, 2GSa/s
Order #: DSOX1202G
Mfg #: DSOX1202G
Product Highlights
Keysight's InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices. Now it's easy to get professional measurements and accessible expertise at your fingertips. Don't settle for less - and test to impress.
- 2 GSa/s sample rate
- 2M points
- Built-in 20 MHz function generator (standard)
- Make professional measurements, including Bode plots (FRA), mask testing, math, FFT, and serial protocol analysis, all standard
- Quickly learn how to use with built-in help and training signals
- See more signal detail at 200,000 waveforms/sec update rate
- Frequency response analysis (Bode gain & phase plots)
- Replaces DSOX1102G
- New Keysight color scheme (dark gray)
- Serial protocol analysis - standard
- LAN interface standard
- Post purchase bandwidth upgrade model numbers:
- D1202BW1A (Upgrade from 70 to 100 MHz)
- D1202BW2A (Upgrade from 70 to 200 MHz)
- D1202BW3A (Upgrade from 100 to 200 MHz)
- Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise
- Test quickly and easily with a simple, intuitive user-interface and built-in help and training signals
- Get professional-level functionality with industry-leading software analysis including standard serial bus analysis for the most popular serial bus standards, and 6-in-1 instrument integration
- Keysight D1202BW1A Bandwidth Upgrade, 70 to 100MHz for InfiniiVision DSOX1202XBandwidth Upgrade, 70 to 100MHz for InfiniiVision DSOX1202X
Order #: D1202BW1A
Mfg #: D1202BW1A
Availability: Ships in 4-6 weeks$376.00 - Keysight D1202BW2A Bandwidth Upgrade, 70 to 200MHz for InfiniiVision DSOX1202XBandwidth Upgrade, 70 to 200MHz for InfiniiVision DSOX1202X
Order #: D1202BW2A
Mfg #: D1202BW2A
Availability: Ships in 4-6 weeks$752.00 - Keysight D1202BW3A Bandwidth Upgrade, 100 - 200MHz for InfiniiVision DSOX1202XBandwidth Upgrade, 100 - 200MHz for InfiniiVision DSOX1202X
Order #: D1202BW3A
Mfg #: D1202BW3A
Availability: Ships in 4-6 weeks$376.00
DSOX1202A | DSOX1202G | ||
---|---|---|---|
Bandwidth | 70 MHz (base bandwidth) 100 MHz (D1202BW1A) 200 MHz (D1202BW2A) |
||
Analog Channels | 2 | ||
External Trigger | Front panel input (Displayable as a 3rd digital channel) |
||
Sample Rate Per Channel (max) | 2 GSa/s (one- or two-channel operation) 1 GSa/s (if external trigger view is turned on) |
||
Memory Depth per Channel (max) | 2 M points (one- or two-channel operation) 1 M points (if external trigger view is turned on) |
||
WaveGen | Not available | 20 MHz function generator | |
Bode Plot | Not available | Standard | |
Waveform Update Rate | 200,000 waveforms per second | ||
Serial Protocol Analysis | Standard : I2C, SPI, UART/RS-232, CAN, LIN | ||
Segmented Memory | Standard | ||
Mask/Limit Testing | Standard | ||
Built-in training signals | Standard | ||
Integrated digital voltmeter | Standard | ||
Frequency counter | Standard | ||
Waveform math | Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter | ||
Automatic measurements | 14 amplitude, 14 timing, and 4 pulse count measurements | ||
Display | 7-inch TFT LCD WVGA | ||
Connectivity | USB 2.0 (host and device), LAN |
