The HD3 Series brings Keysight's industry-leading capabilities from high-performance oscilloscopes to the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware technology from the UXR Series, the HD3 boasts impressive resolution with four times the vertical accuracy with a 14-bit ADC and half the noise floor of other 12-bit scopes. Paired with our fast waveform update rate, digital trigger, and deep memory, the HD3 Series can capture small signals with high vertical resolution.

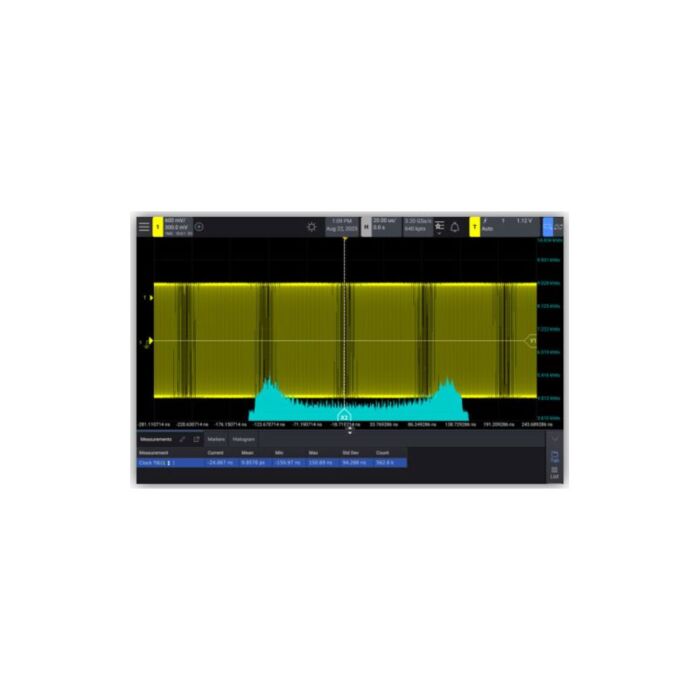

H300QJTA is a simple tool for characterizing the behavior or periodic signals, leveraging the precision of the HD3. The application includes one-button setup of essential views and visualization of results using histograms, measurement trends, and measurement spectral views.
- Characterize the behavior of periodic signals
- One-button setup of essential views
- Visualization using histograms, measurement trends, and measurement spectral views
Applications
- Timing/Jitter Analysis of Periodic Signals
- Design or Debug of Synchronous Systems
- Verification and Test in Mixed-Signal/ Analog-Digital Domains
- Quick Measurements in Lab/ Production/ QA
Each Unit Includes
- QuickJit Jitter Analysis Software Package, For InfiniiVision HD3 Series (HD300QJTA)
