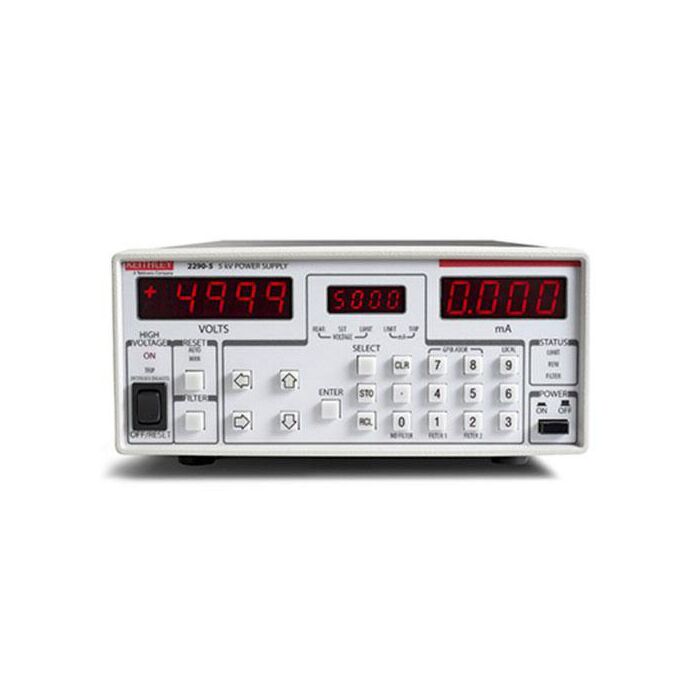

Keithley 2290-5
5kv Power Supply, 120vac Nominal Input Voltage
Order #: 2290-5
Mfg #: 2290-5
$9,086.00
$9,086.00
Availability: Call for availability
Product Highlights
- Voltage: 5 kV
- Current: 0.005A
- Power: 100W
- Source voltages up to 5kV
- 1µA current measurement resolution
- Low noise for precision sourcing and sensitive measurements; selectable filters reduce noise to less than 3mVRMS on the 5kV supply
- Safety interlock controls high voltage output
- IEEE-488 programmable
- Protection module prevents damage to low voltage instrumentation
- Accessories Supplied: CD with user manual, software drivers, and accessory information, Power cord
- 1-Year Warranty
The Keithley 2290-5 provides voltage outputs up to 5000V and has a 5mA current capacity, and the supply measures both output voltage with 1V resolution and output current with 1µA resolution. In addition to the voltage and current output displays, a third display shows one of four settings: output voltage, voltage limit, current limit, or current trip. These values can be set precisely with the front panel keypad. The settings can also be programmed over the IEEE-4888 interface, or the output voltage can be set with an analog control voltage.
