Fluke 87V/IMSK Industrial Multimeter Service Combo Kit

Order # FLUKE-87V/IMSK | Mfg # 3448783

Save 11%

$876.39

$779.98

In stock

Large Display digits and two-level bright white backlight for increased visibility.

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Fluke has combined the best selling feature packed 87V Multimeter with the i400 AC Current Clamp
Together they provide the ability to troubleshoot most industrial problems, providing you with the functionality you need to effectively do your job
Additionally, the 87V/IMSK kit represents a significant savings over buying the items separately
Fluke-87V Multimeter with temperature frequency, capacitance 250 µs peak min-max
6000 counts, 3-3/4 digits
Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
Fluke-i400 AC 400A Current Clamp
Companion to your DMM to measure up to 400 A AC
1mA/Amp output guarantees easy reading on you meter
Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
Specially designed to offer maximum utility in a very compact shape
22 of the most useful accessories for making measurements in low energy, electronic applications
80BK-A thermocouple bead probe
TL75 test leads
AC72 Alligator Clips
Limited Lifetime warranty on Fluke-87V and 1-year warranty on accessories

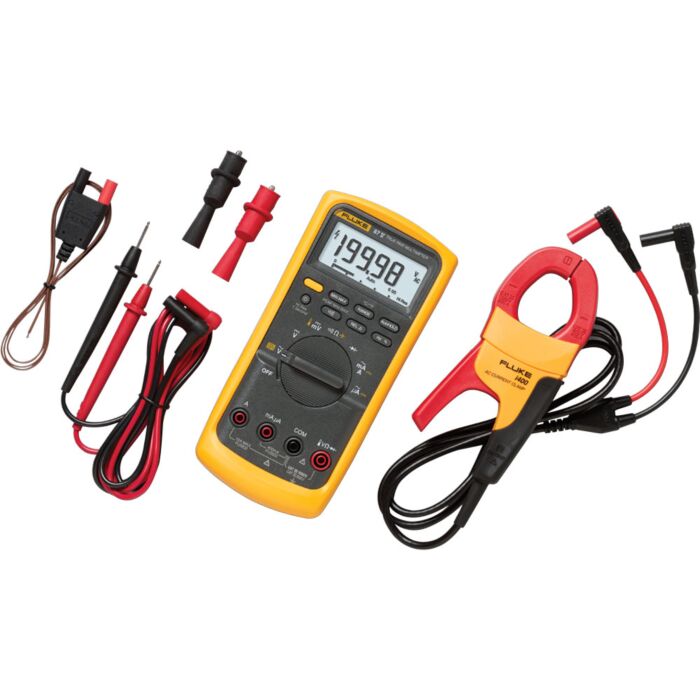

Each Unit Includes

Fluke-87V Multimeter
Fluke-i400 AC 400A Current Clamp
80BK-A thermocouple bead probe
TL75 test leads
AC72 Alligator Clips

Webinars

Electrical Safety Measurement Webinar with Fluke

Technical Resources

Fluke 80 Series V Industrial Multimeter - User's Manual
Fluke 80 Series V Industrial Multimeter - User's Manual Supplement
Fluke 80 Series V Industrial Multimeter - Calibration Manual
Fluke 80 Series V Industrial Multimeter - Calibration Manual Supplement
Fluke 80 Series V Industrial Multimeter - Safety Sheet
Fluke 80 Series V Industrial Multimeter - Quick Reference Guide
Fluke 80 Series V Industrial Multimeter - Statement of Memory Volatility
Fluke 80 Series V Industrial Multimeter - CSA Certificate of Conformity
Fluke 80 Series V Industrial Multimeter - EMC Certificate of Conformity
Fluke 80 Series V Industrial Multimeter - TUV SUD Certificate of Conformity
Application - Detecting Intermittents with a DMM
Application - Troubleshooting Power Harmonics
Application - Who Sets the Rules for Electrical Testing and Safety
Brochure - Add Wireless to your Fluke Digital Multimeter
Brochure - Fluke DMM Selection Guide
Brochure - Fluke 27II / 28II Sales Conversion Guide
Brochure - The New Standard for Rugged
Fluke 83V / 87V Digital Multimeter - Technical Data
White Papers - Multimeter Safety by the Numbers
Fluke - Electrical Safety Measurement Webinar

Specifications

Specifications
Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.05% + 1)
	Maximum resolution	10 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.7% + 2) True RMS
	AC bandwidth	20 kHz with low pass filter; 3 db @ 1 kHz
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.2% + 2)
	Maximum resolution	0.01 µA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.0% + 2) True RMS
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.90%
	Accuracy	±(0.2% per khz + 0.1%)
	Maximum resolution	0.10%
Temperature measurement	–200.0°C – 1090°C
	–328.0°F – 1994.0°F
	excluding probe
80 BK temperature probe	–40.0°C – 260°C
	–40.0°F – 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty cycle range	Accuracy	Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature	–20°C to + 55°C
Storage temperature	–40°C to + 60°C
Humidity (without condensation)	0% – 90% (0°C – 35°C)
	0% – 70% (35°C – 55°C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals	UL, CSA, TÜV, VDE listed
Mechanical and General Specifications
Size	201 x 98 x 52 mm (with holster)
Weight	355 g
	624 g – with holster
Display	Digital	6000 counts updates 4/sec.
		19,999 counts in high–resolution mode
	Analog	32 segments, updates 40/sec
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Warranty	Lifetime
Battery Life	Alkaline	~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010–1:2001
Vibration	Per MIL–PRF–28800 for a Class 2 instrument
