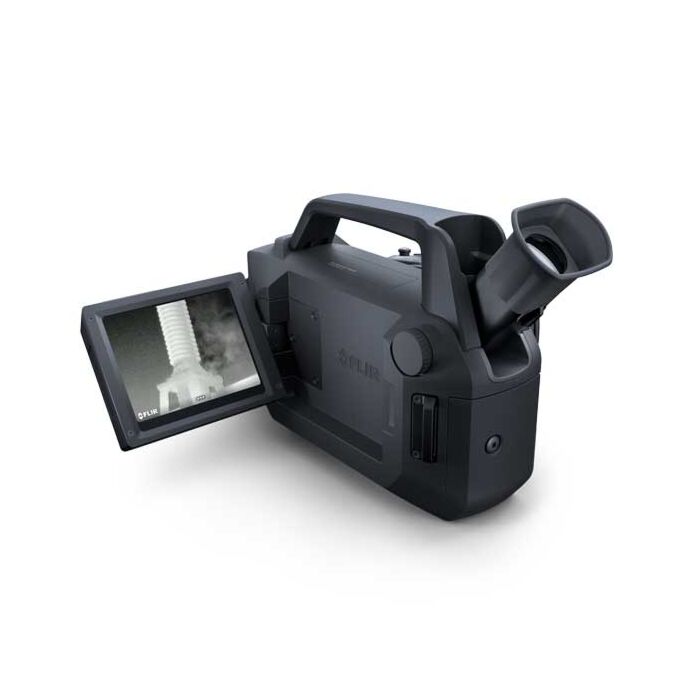

The FLIR G306 is an innovative Optical Gas Imaging (OGI) camera used to visualize sulfur hexafluoride (SF6), ammonia (NH3), ethylene (C2H4), and other industrial gas leaks in various environments. SF6 is a potent greenhouse gas with a global warming potential that's more than 23,000 times greater than C02 over a 100-year period. SF6 is commonly used within the electric power industry as an insulator and quenching medium for gas-insulated substations and circuit breakers. With the portable, non-contact G306, you can safely and efficiently scan substations for dangerous and environmentally harmful gas leaks without interfering with electric utility delivery or shutting down industrial operations.
- IR Resolution: 320 x 240 pixels (76,800 pixels)
- Detector Pitch: 30 µm
- Accuracy: +/-1°C (+/-1.8°F) for temperature range (0°C to 100°C, 32°F to 212°F) or +/-2% of reading for temperature range (>100°C, >212°F)
- Spectral Range: 10.3 µm to 10.7 µm
- Adjustable Viewfinder: Built-in, tiltable OLED, 800 x 480 pixels
- Camera f-number: 1.59
- Color LCD: 4", 640 x 480 pixel rotatable, touchscreen LCD
- Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Detector Pitch: 30 µm
- Detector Type: Focal plane array, cooled QWIP
- Display Frame Rate: 60 Hz
- Field of View: 14.5° x 10.8°
- Focus: Manual or Automatic
- Image Analysis: 10 spots, 5 boxes with max/min/average, 1 line (horizontal or vertical), measurement corrections
- Image Modes: IR image, visual image, High Sensitivity Mode (HSM)
- IR Resolution: 320 x 240 pixels (76,800 pixels)
- Laser Spot: Yes
- MPEG Video Recording: Yes
- Radiometric IR Video: RTRR (.csq), Over UVC
- Radiometric JPG: Yes
- Sensor Cooling: Stirling Microcooler (FLIR MC-3)
- Spectral Range: 10.3 µm to 10.7 µm
- Video Recording & Streaming: Real-time non-radiometric streaming: RTP/MPEG4
- Visual Image: 3.2 MP from integrated visible camera
- Zoom: 1-8x continuous, digital zoom
