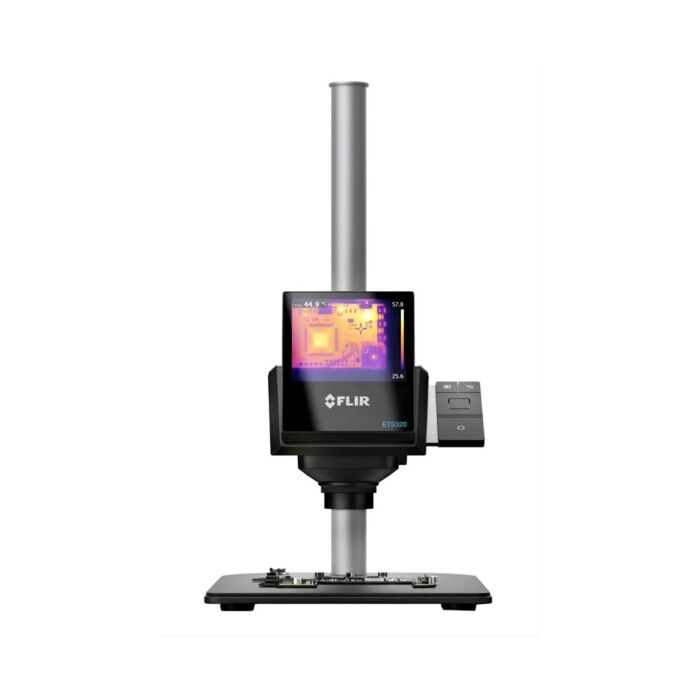

Rent FLIR ETS320 Thermal Camera for Bench Use

Product Highlights

The Flir ETS320 Thermal Camera was designed for quick temperature checks on PCB boards and electronic devices in the lab. Reduce your test times and improve product design. The Flir ETS320 takes the guesswork out of thermal testing across more than 76,000 points at once with the sensitive, accurate 320 x 240 detector. The FLIR ETS320 is the first thermal camera specifically designed for hands-free laboratory testing.

Engineered specifically for lab electronics testing, the ETS320 is battery powered and hands free, and connects via USB to your PC for immediate analysis and sharing of thermal data.

Features of the Flir ETS320

320 x 240 pixel IR detector
45° field of view
Crisp 3" LCD display provides immediate thermal feedback
Thermal sensitivity (NEtD) of 0.06C
Temperature measurement accuracy of +/-3C
Wide temperature range, up to 250C
Records standard radiometric JPEGs
Ergonomically designed for benchtop use
IR Resolution: 320 x 240 (76,800 pixels)
Spectral Range: 7.5 - 13.0 µm
Detector Type: Uncooled microbolometer
NETD: <60 mK
Available Lenses: NA
Camera f-number: f/1.5
Close-up Lenses/Microscopes: NA
Field of view (FOV): 45° x 34°
Fixed Focus Distance: 70 mm ± 10 mm
Image Frequency: 9 Hz
Non-radiometric IR video streaming: Uncompressed colorized video using USB
Radiometric IR video streaming: Full dynamic to PC (FLIR Tools/Tools+) using USB
Spectral Range: 7.5 - 13.0 µm
Spot Size Min. Focus: 170 µm
Accuracy: ±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F)
Area: Box with max/min
Camera size (L x W x H): 22 x 15 x 30 cm (8.7 x 5.9 x 11.8 in)
Camera weight incl battery: 0.575 kg (1.27 lbs)
Emissivity Correction: Variable from 0.1 to 1.0
Reflected apparent temperature correction: Automatic, based on input of reflected temperature
Spot Meter: Center spot
Image File Format: Standard radiometric JPEG, 14-bit measurement data included
Interface: USB Micro: data transfer to and from PC and Mac devices

Applications

Laboratory work
Product development/testing
Research & development
Thermal testing

Improve Product Design

The FLIR ETS320 promotes design improvements and shortens product development time by detecting design flaws that materialize as heat.

320 x 240 IR sensor offers 76,800 points of non-contact temperature measurement
True 45° field of view for broad initial scans to identify potential problems
Measurement accuracy promotes quality assurance and factory acceptance of PCBs

Designed for Laboratory Work

The ETS320 is designed for hands-free laboratory testing, with simplified features that allow users to focus on their work instead of on the camera controls.

Pole mount included for fast and easy setup
Crisp 3" LCD display provides immediate thermal feedback
FLIR Tools+ software for instant analysis, including Time vs. Temperature measurement
