The HF5A-series is the latest development in advanced measurement transmitters. Compatible with our range of digital (HC2, HC2A and RMS) probes for humidity and temperature, temperature only, and differential pressure. The HF5A can also provide all standard psychrometric outputs. Our advanced digital probes have integrated AirChip3000 technology – thanks to which the probes achieve an unparalleled degree of accuracy. For Humidity and Temperature measurements the HygroFlex5 Advanced HF5A-21, HF5A-31 and HF5A-D1 transmitters combined with a HC2A-S advanced probe provide superb precision and state-of-the-art functionality, taking humidity and temperature measurement to a whole new level of accuracy < 0.8 %rh and < 0.1 K at 23 °C. HygroFlex5 outputs include mA, voltage and modbus RTU via RS485.
- Number of Wires: 2
- Operating Temperature: -10 °C to 60 °C
- Supply Voltage: 18 to 36 Vdc
- Measurement Type: Relative Humidity, Temperature, Differential pressure, Frost
- Mounting Orientation: Wall Mount
Applications
- Air and HVAC
- Electronic Equipment
- Environmental Monitoring
- Flow Measurement
- Food and Beverage
- Level Monitoring and Control
- Pharmaceuticals
- Process Automation and Control
- Product Quality Assurance
- Temperature Maintenance
Each Unit Includes

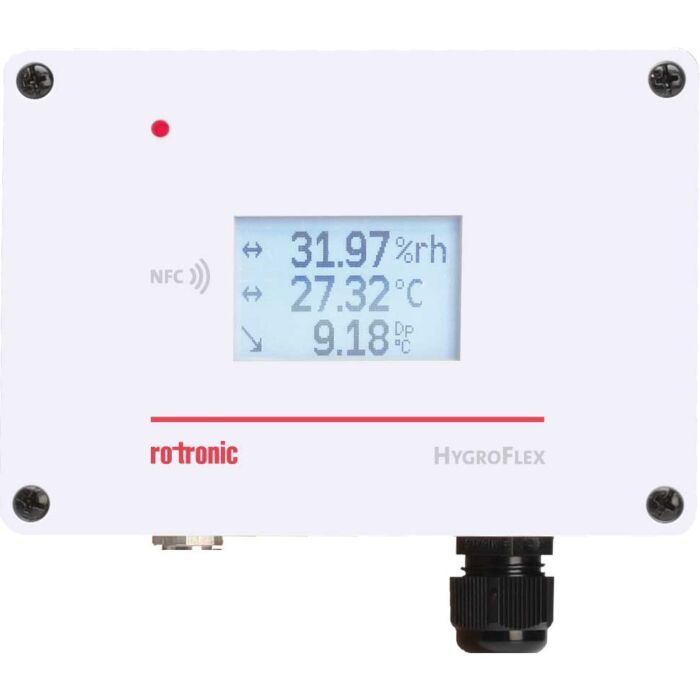

- Temperature Transmitter, 2-wire with Display (HF5A-21D0300210100)
