Range: 0 in w.c. to 0.5 in w.c. (125 Pa, 12 mm w.c.)
Tariff fees or manufacture imposed surcharges may be applicable.
Overview

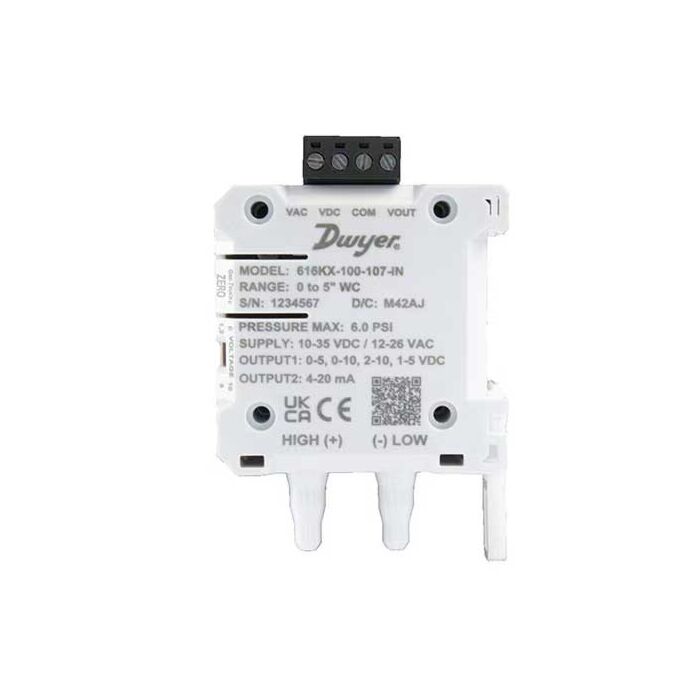

The Series 616KX Differential Pressure Transmitters are the ideal choice for installers and maintenance professionals that want maximum flexibility in pressure ranges in a compact design. Dwyer's smallest differential pressure transmitter is designed for simplicity with edge mounted push button zero for easy access in all mounting configurations and field selectable output signals. The molded housing accommodates three sizes of both imperial and metric process connections, along with optional 1/8 in NPT or BSPT threaded models, make process connections simple.
Extensive range and accuracy selection suitable for a broad range of applications offering maximum flexibility in one product platform.
Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key.
Edge mounted push button zero for easy access in all mounting configurations saves time.
Optional 1/8 in NPT and BSPT process connection allows customer to use their own fittings.
Accuracy: +/- 2 %
Measurement Pressure, Max: 0.5 inH2O
Measurement Pressure, Min: -0.5 inH2O
Range: 0 in w.c. to 0.5 in w.c. (125 Pa, 12 mm w.c.)
