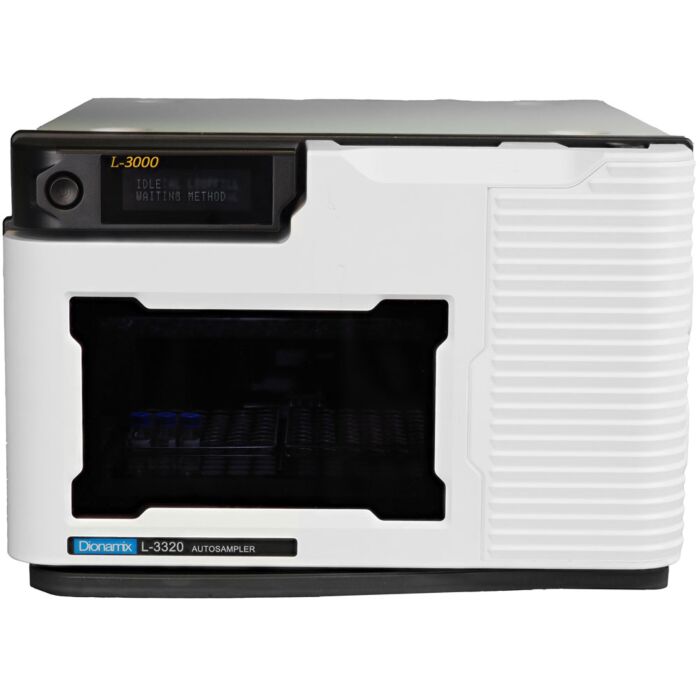

Dionamix L-3320
Autosampler with Multi Injection Modes

Order #: L-3320

Mfg #: 3021003320

Questions about availability or need help? Contact Us:

(800) 633-0561
$25,473.00

Dionamix L-3320

Autosampler with Multi Injection Modes

Order #: L-3320

Mfg #: 3021003320

$25,473.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Large sample vial tray capacity
  • Accommodates high and low vial heights
  • Multi injection mode supporting full, partial and micro pickup volumes
  • Superior cleaning to avoid cross contamination

The Dionamix L-3320 Autosampler is designed to significantly speed up analysis of routine sampling. The L-3320 comes standard with 2 x 48 vial sample trays with ability to optionally expand up to 2 x 96 or 2 x 384 sample trays in addition to accommodating standard high or low plate or vial. The Autosampler has a Multi Injection Mode capability supporting full loop, partial loop and micro pick up without changing any hardware.

Critical to sample analysis is cleanliness and avoiding cross contamination, the design of the Dionamix L-3320 Autosampler achieve this by employing a double wash system, one for cleaning the outer needle and pickup surfaces and a second, separate wash for the needle inner parts.

Maintenance is also key to achieving quality test results and ensuring the maximum lifespan out of the Autosampler. With the L-3320, all maintenance parts are easily accessed via the front of the instrument, no complex disassembly required.

With DataApex Clarity workstation, Dinamix Autosampler can work with most major brands in the market.

Dionamix is open for Autosampler OEM business.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Dionamix 2010003743
    Dionamix 2010003743
    C-type inlet check valve sleeve L-32XX Pumps

    Order #: 2010003743

    Mfg #: 2010003743

    Availability: Ships in 3-4 weeks
    $68.60
Specification
Sample Capacity 2 standard 48-vial tray or2 standard 96-well or 2 standard 384-well
Loop Volume Standard 100 µL; 10 µL, 20 µL and 50 µL optional
Syringe Volume Standard 250 µL, 100 µL optional
Injection Mode Full Loop, partial loopfill and µL pickup mode
Reproducibility Full loop injection: RSD ≤ 0.3% Partial loopfill injection: RSD ≤ 0.5% µL Pickup injection: RSD ≤ 1%
Cross Contamination < 0.02% (after programmed needle wash)
Max Injection Volume Full loop injection= loop volume Partial loopfill injection = 1/2 of loop volume µL Pickup injection = (loop volume -3 x needle volume)/2
Specification
Weight L-3320 17 kg (37.5 lbs)
Dimension (L x W x H) 453 x 359 x 244 mm 17.9 x 14.2 x 9.6 inches
Voltage 110 VAC rms - 240 VAC rms
Frequency 50 Hz - 60 Hz
Power 110 W max
Operating Temperature 15°C - 35°C (with less than 2°C/ hr temperature variation) 59 °F - 95°F
Operating Humidity 20% RH - 80% RH
