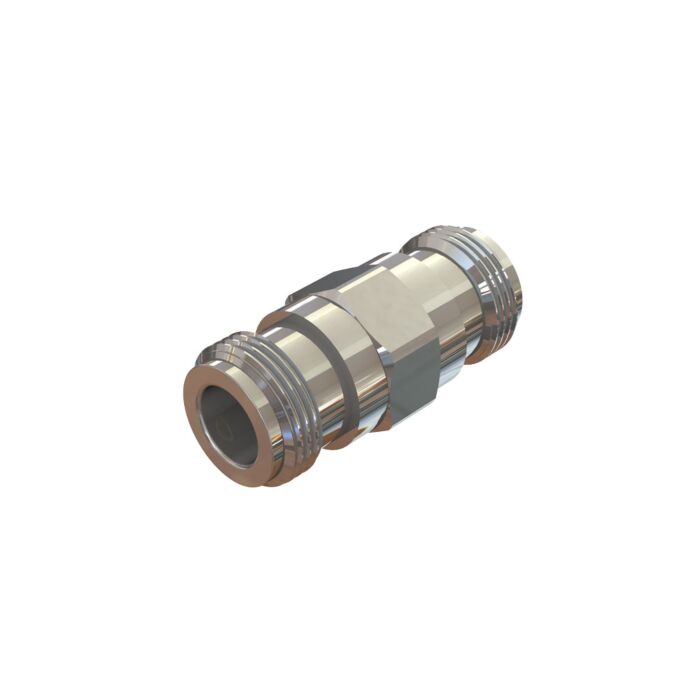

Cal Test Electronics CT3350A N-Type female to female Adapter

Cal Test Electronics CT3350A

Order # CT3350A

Mfg # CT3350A

call-regular 800-828-1470
$141.57
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

Cal Test Electronics CT3350A

Order # CT3350A | Mfg # CT3350A
$141.57
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The CT3350A in an Instrument Grade coaxial adapter which provides that next level of measurement confidence. The grade provides tighter tolerances and better materials for improved performance in critical measurements. It is that cost effective middle-ground between general-purpose and very expensive metrology grade.

  • Accuracy
  • Low VSWR
  • Flat frequency response
  • Repeatability
  • Cost effectiveness

Technical Resources

Cal Test Electronics CT3350A Product Drawing

Specifications

Connector Grade Instrument
Body and Coupling Nut Stainless Steel, Passivated
Center Contact BeCu, Gold Plated
Dielectric PTFE
Impedance 50 Ω
Frequency DC to 11 GHz
Insertion Loss 0.05 dB @ 9 GHz
Dielectric Withstanding Voltage 1,000 V Max @ Sea Level
Insulation Resistance 5,000 MΩ Min
VSWR ≤1.20:1 @ 11 GHz
Temperature Range -55°C to + 85°C
RoHS 2(2011/65/EU) Compliant
REACH Compliant
