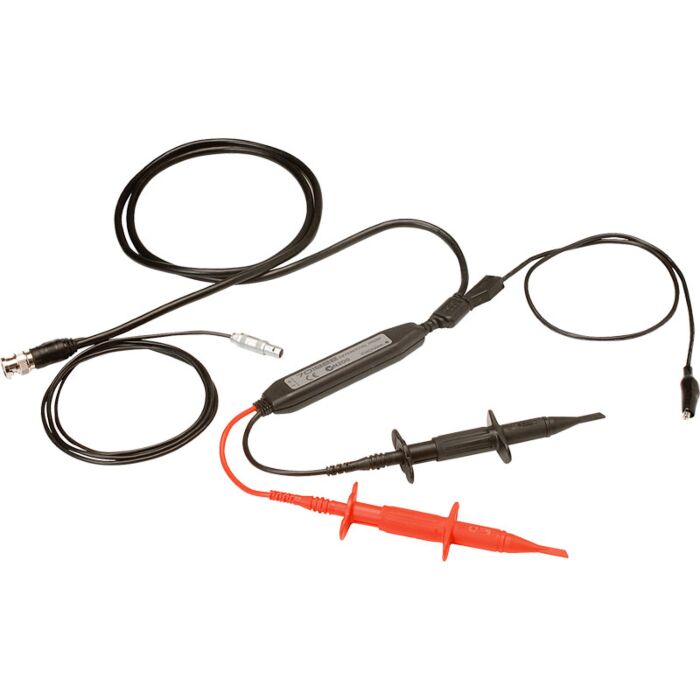

Yokogawa 701922 for Rent, Differential Probe, 20Vp DIFF, 60Vp CM, 200MHz
Order #
701922-RENT2
|
Mfg #
701922-RENT2
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Overview
Product Highlights
- Bandwidth: DC to 200MHz
- Attenuation ratio: 10:1
- Connector Type: BNC (works with virtually all scopes)
- Input Resistance: 500kΩ (each side to ground)
- Input Capacitance: 7pF (each side to ground)
- Rise Time: not specified
- Differential Input Voltage Range: +/-20V
- Common Mode Input Voltage Range: +/-60V
- Max Ground-Referenced Input Voltage: +/- 60V (DC + ACpeak)
- Output Voltage: +/- 2V (DC + ACpeak)
- Output Impedance: 50Ω
- Gain Accuracy: +/- 1%
- CMRR: -80dB 100Hz, -50dB 10MHz
- Cable Length: Approx 1.2m total cable length
- Standard accessories included: pinchers B9852MF black & B9852MG red, 50cm ground extension.
Specifications
| Bandwidth |
: |
DC to 200 MHz |
| Attenuation |
: |
10:1 |
| Max. Input Voltage:(to ground) |
: |
±60 V (DC + ACpeak) CAT I |
| Max. Differential Voltage |
: |
±20 V (DC + ACpeak) |
| Probe Power |
: |
probe power supply |
| Work with 50 Ω input system oscilloscope |
