Product Highlights

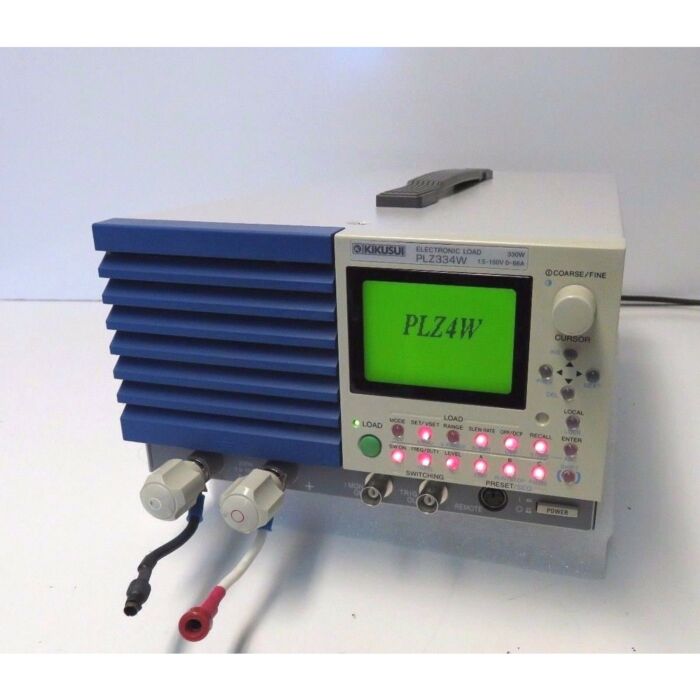

DC Electronic Load (E-Load), 1.5 to 150V, 66A, 330W , Rise time: 10 µ s (which converts to rise and fall times) high-speed response, Possible to perform actual Load simulation by sequence control function
The PLZ-4W Series Electronic Load unit is a multifunctional system designed to offer the highest levels of reliability and safety with operation function of constant voltage, constant current, constant power and constant resistance mode. And its control unit comes with GPIB, RS232C and USB as standard equipment, available in 5 models. A 0(Zero)V input operating voltage is available in 2 models (PLZ164WA, PLZ664WA) which are suitable to meet the testing demands for the Fuel Cell, DC/DC converter, SW Power Supply, and any other devices required for the lower operating voltage application. Model PLZ664WA offers the 132A at 0V input as a largest current rating in its class. ( 33A for model PLZ164WA). Furthermore, the PLZ-4W features high speed slew rate when switching, it can be used as simulating load for the characteristic, performance, life cycle, aging test in the field of application in Automobile electronics, SW Power Supply manufacturer, Secondary Battery. To achieve large capacity for testing application at low cost, PLZ1004W can be expanded up to 9kW by using its 2kW booster unit (PLZ2004WB).
