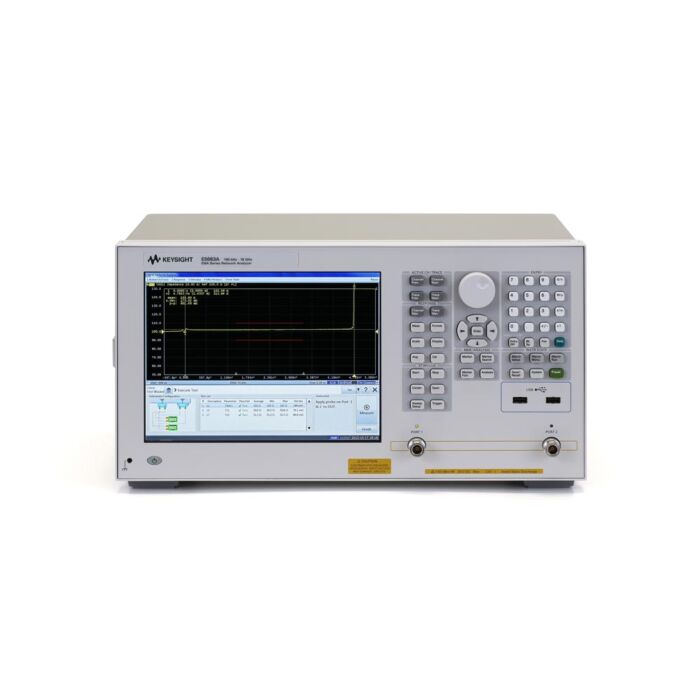

Used Keysight E5063A-285 ENA Series Network Analyzer 2-Port Test Set, 100kHz-8.5GHz

General-purpose RF network analyzers are essential for simple passive component measurements in education institutions and RF labs. The Keysight E5063A enables you to reduce your test equipment cost without sacrificing test quality

• Frequency range: 100 kHz to 8.5 GHz
• Low trace noise: 0.002 dBrms (Typical, at 8 MHz to 4.35 GHz, IFBW = 70 kHz, transmission measurement.)
• Wide dynamic range: 122 dB (Typical, at 100 MHz to 4.35 GHz, IFBW = 10 Hz.)
• High temperature stability: 0.01 dB/C (Typical, at 300 kHz to 6 GHz)
• Test port - 2-port S-parameter, 50 ½, Type-N connectors
• Sweep type - Linear and log frequency, Segment sweep
• Calibration Capabilities: Short-Open-Load-Thru (SOLT), TRL, Unknown thru, Waveguide, ECal, Adapter removal/insertion
• Analysis: Time domain / Test wizard, Wireless power transfer analysis (Optional), mixedmode S-parameters, test fixture de-embedding, pass/fail limit testing, Equation editor. Materials measurement (External software (N1500A) required.)
• Upgradability: Frequency, software options
• Connectivity: USB (6 ea), LAN, GPIB (Optional), 24-bit Handler I/O (Optional)
