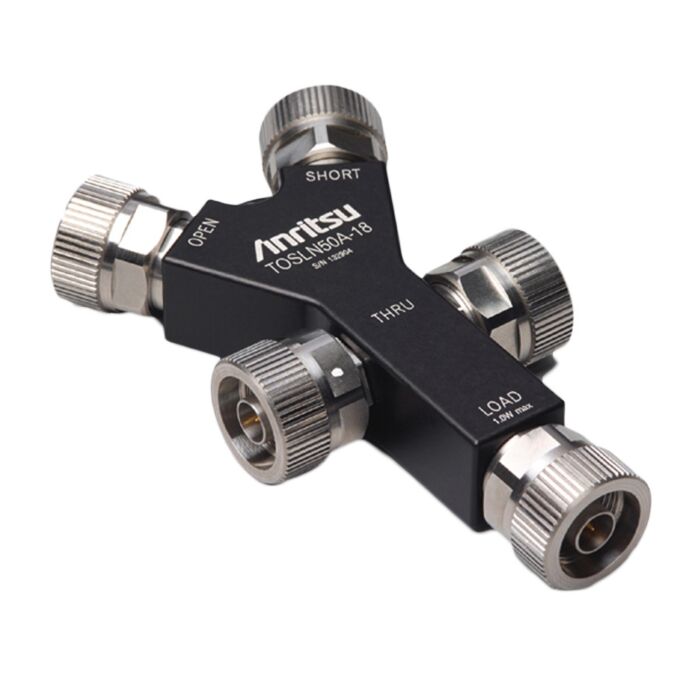

The Anritsu TOSLN50A-18 is a high-precision mechanical coaxial calibration kit used with Vector Network Analyzers (VNA) for field and laboratory measurements. It is a single-piece component that provides Thru, Open, Short, and Load (TOSL) standards in a single "tee" adapter format.
This calibration kit has been designed to provide superior measurement results when used with precision instruments. It is designed for use in both field and lab environments. It is a high precision component and should be handled with proper care. Excessive shock, torque, or power should be avoided to prevent permanent damage.
- Frequency Range: DC to 18 GHz, suitable for high-frequency measurements
- Connector: Type N(m) - Male connector
- Impedance: 50 Ω nominal.
- Performance: High-performance calibration with optimized return loss (RL) specifications (6/9/18 GHz ≥ 42/37/33 dB)
- Designed for use in both lab and field, ensuring reliable performance in varying conditions
Applications
- VNA Calibration
- Manufacturing Test
- Field/Lab Maintenance
- Component Testing
Each Unit Includes
- 1 - Coaxial Calibration Kit, Type N (TOSLN50A-18)
