Thermo Fisher Scientific CM 3CD-SRG for Rent, 3-Phase Couple/Decoupler
3-Phase Couple / Decoupler
Order #: CM 3CD-SRG-RENT2
Mfg #: CM 3CD-SRG-RENT2
Call for price
Call for price
Thermo Fisher Scientific CM 3CD-SRG for Rent, 3-Phase Couple/Decoupler
3-Phase Couple / Decoupler
Order #: CM 3CD-SRG-RENT2
Mfg #: CM 3CD-SRG-RENT2
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability: Call for Availability
Product Highlights

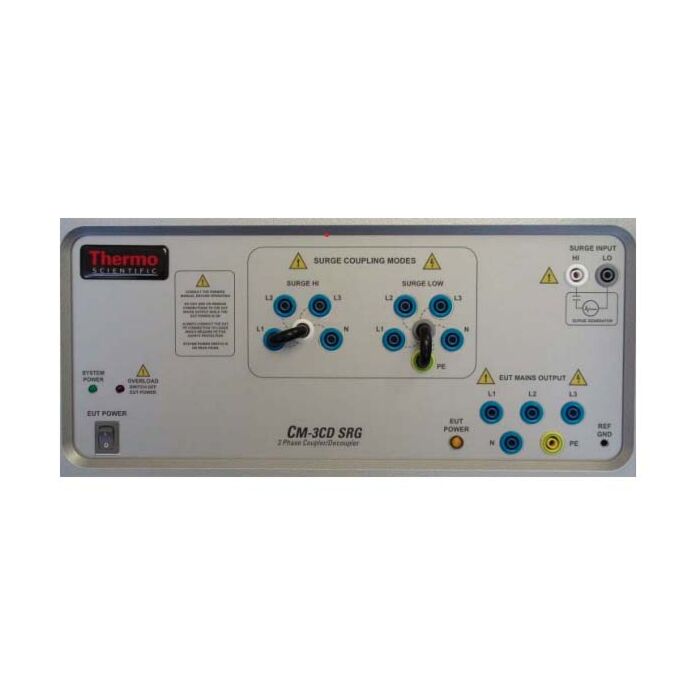

Keytek CM-3CD-SRG is a 3-phase surge coupler that is often used with the Keytek EMCPro Plus. This instrument is designed to allow users to efficiently set up and perform surge tests. The maximum surge voltage of the unit is 6.6 kV and the maximum surge current is 3.3 kA. With pre-programmed IEC test routines users are able to save time and achieve more accurate results.
Surge | Combination wave: 1.2/50 µs open-circuit voltage, 8/20 µs short-circuit current, per IEC 61000-4-5 |
Maximum Surge Voltage & Current | 6.6 kV, 3.3 kA |
AC Voltage | 50 to 250 V, 50/60 Hz line to ground, 50 to 433 V line to line |
DC Current | 25 A up to 48 V 8 A up to 220 V 1.2 A up to 220 V 0.3 A up to 440 V |
AC Current | 32A/phase continuous |
Input Current | 1 A at 120 VAC; 0.5 A at 240 VAC |
Power Requirements Input Voltage | 90-250 VAC, 50/60 Hz |
- Semi-automatic operation when used with Thermo KeyTek’s CEMASTER or EMCPro simulators reduces the possibility of test sequence errors by prompting the user to make coupling mode selections
- Pre-programmed IEC test routines save time and decrease the potential for human error
- Ergonomic design provides maximum flexibility for operating from a table top or within a 19-inch rack.
- Portable architecture with rugged handles and optional transit case enables users to transport the unit between departments or remote facilities
