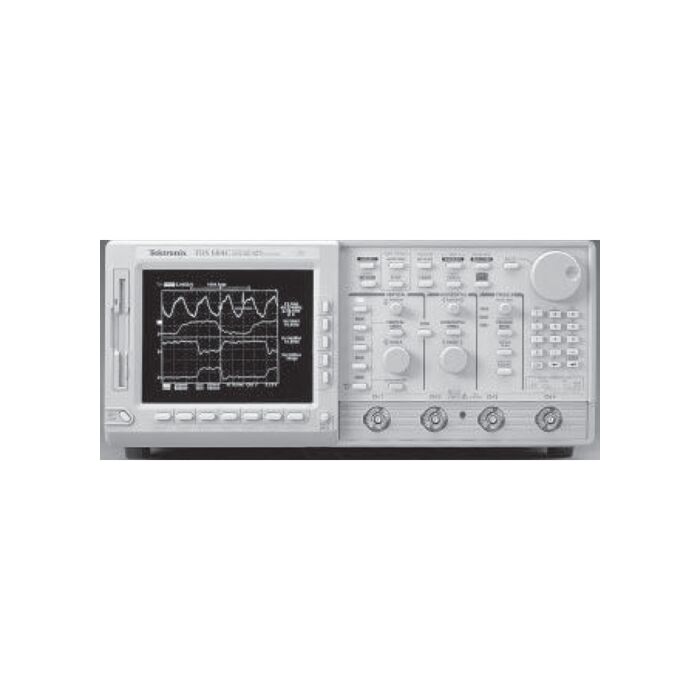

Tektronix TDS640A for Rent, Digital Real-Time Oscilloscope, 500MHz, 4-Channel, @GSa/s

Tektronix TDS640A Highlights

The Digital Real-TimeT architecture of the Tektronix TDS 600 Series, including the Tektronix TDS640A Digital Real-Time Oscilloscope 500 MHz, 2 GS/s, simplifies capturing intermittent signals or non-recurring problems like glitches or metastable states caused by setup and hold time violations. TDS 600 Series provides design engineers excellent single shot accuracy for multi-channel, high speed signal characterization.

• 1 GHz and 500 MHz Bandwidth
• 2 GS/s Sample Rates
• 4 Input Channels
• 8-Bit Vertical Resolution
• Greater than 11-Bits with Averaging
• Record Length to 15,000 Points
• 1 mV/div to 10 V/div Sensitivity
• 1.5% Vertical Accuracy
• Waveform Math and Advanced Waveform DSP
• Fully Automated Measurement System
• Waveform Pass/Fail Template Testing
• Color VGA Display
• 3.5 in. DOS Format Floppy Drive
• RS-232, Centronics, GPIB and VGA I/O Ports

Tektronix TDS640A Applications

• Digital Design Characterization and Verification
• Telecommunications/Datacommunications
• Transient Event Capture
• High Energy Physics
