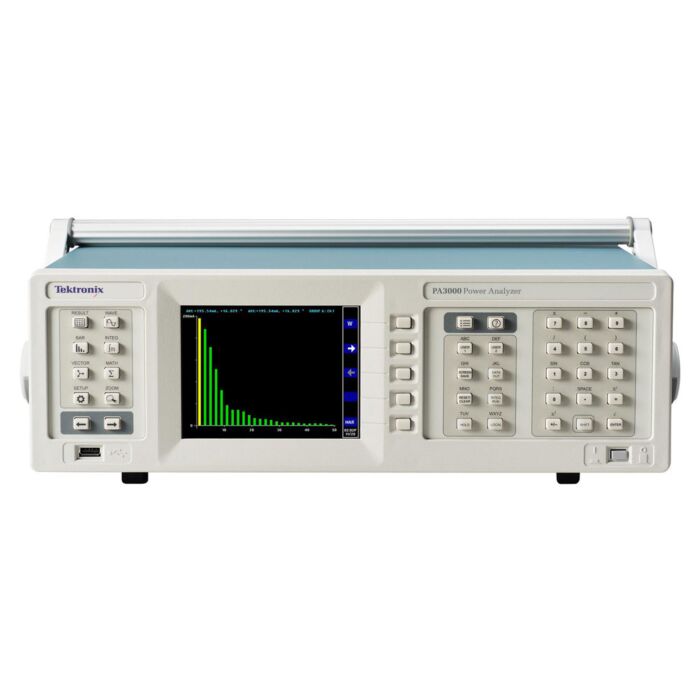

Tektronix PA3000 for Rent, 4 Channel Power Analyzer, 1 to 3 Power Phases
PA3000 4Channel Power Analyzer 1 to 3 Power Phases
Order #: PA3000-4CH-RENT2
Mfg #: PA3000-4CH-RENT2
Call for price
Call for price
Tektronix PA3000 for Rent, 4 Channel Power Analyzer, 1 to 3 Power Phases
PA3000 4Channel Power Analyzer 1 to 3 Power Phases
Order #: PA3000-4CH-RENT2
Mfg #: PA3000-4CH-RENT2
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Product Highlights
The Essential Power Measurement Tool For R&D and Validation
- High accuracy supports testing to Level VI efficiency standards for external AC/DC power supplies
- Dedicated energy consumption testing in integration mode for standards like Energy Star and CEC
Key features and specifications
- Four channels support single and three phase applications
- 10 mW standby power measurement
- 1 MHz bandwidth
- 1 MS/s sampling rate
- 16 bit A/D
- Harmonic analysis to 100th order
- ±0.04% basic voltage and current accuracy
- Measurements to 30 Arms and 600 Vrms Cat II (2000 Vpk)
- USB and LAN interfaces standard (GPIB option)
- Free PWRVIEW software Full color graphical display for intuitive readouts of measured values, waveforms, harmonics, and energy integration plots
