Used Tektronix 80E04 Time Domain Reflectometry Sampling Module for DSA8300

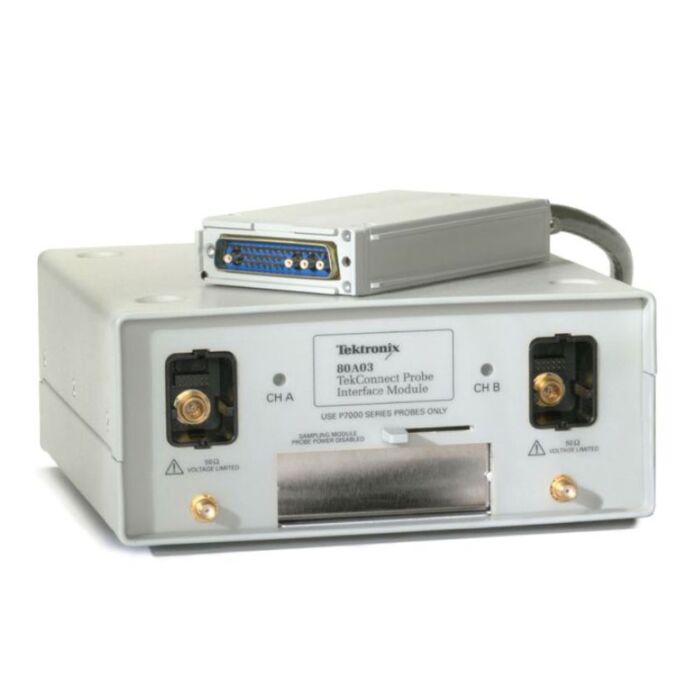

Tekconnect Probe Interface Module
Order #: 80A03-USED
Mfg #: 80A03-USED
$5,987.50
Used Tektronix 80E04 Time Domain Reflectometry Sampling Module for DSA8300
Tekconnect Probe Interface Module
Order #: 80A03-USED
Mfg #: 80A03-USED
$5,987.50
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
Product Highlights
The 80A03 TekConnect Probe Interface Module extends the capabilities of the DSA8300 oscilloscope and makes debugging today's high-performance electrical and optical designs a little easier. Using the 80A03 with the DSA8300 oscilloscope, design engineers can benefit from Tektronix industry-leading active and differential probes to measure signals on SMD pins and other challenging circuit features.
- Interfaces Tektronix P7000 Series high-performance active and differential probes to DSA8300 sampling scopes
- Enables probing using Tektronix active and differential probes
- Allows easy probing of SMDs with the small head design of Tektronix differential probes
- Seamless integration: Automatically scales measurement for probe attenuation setting; Requires no user adjustments; Powered through the oscilloscope interface - requires no external power cord
- Integrated extender cable plugs into any of the four electrical sampling module slots
- Upgradeable to future higher-bandwidth active and differential probes
