Order #: FSU8-RENT2
Mfg #: FSU8-RENT2

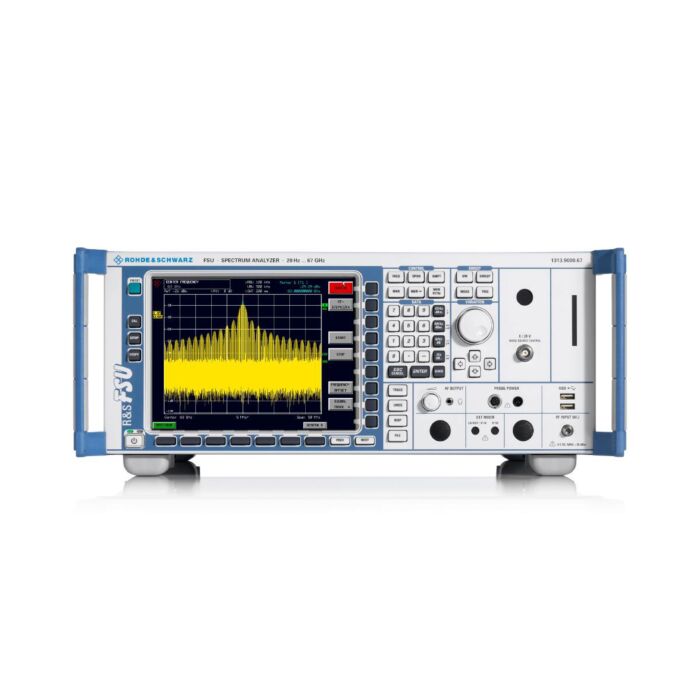

Rohde & Schwarz FSU8 for Rent, Spectrum Analyzer, 20Hz to 8GHz
Order #: FSU8-RENT2
Mfg #: FSU8-RENT2
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Product Highlights
The R&S®FSU is a high-performance spectrum analyzer with outstanding performance in phase noise, dynamic range and measurement accuracy that meets any challenge in RF analysis - in aerospace and defense or for general microwave applications up to 67 GHz.
To handle the wide variety of measurement tasks in product development, an instrument must offer ample functionality and excellent performance in all areas of interest. The R&S®FSU fully meets these requirements.
Its wide dynamic range makes the R&S®FSU an ideal tool for base station development and testing. That plus the excellent characteristics already incorporated in the standard model, e.g.
- 3.6/8/26/43/46/50/67 GHz
- TOI > 20 dBm, typ. +25 dBm
- 1 dB compression: +13 dBm (0 dB RF attenuation)
- Displayed average noise level: -152 dBm at 2 GHz; -148 dBm at 26 GHz (1 Hz bandwidth)
- Typ. 77 dB ACLR for 3GPP, typ. 84 dB with noise correction
- Phase noise: typ. -160 dBc (1 Hz) at 10 MHz carrier offset
- Shorter development cycles through versatile functions, wide dynamic range and performance
- Full choice of detectors
- Versatile resolution filters
- Full range of analysis functions
- High dynamic range
- Innovative solutions through customized options
- Measuring frequency deviation after settling
- Power measurement
- Scalar network analysis with wide dynamic range
- Spectrum analysis up to 67 GHz/110 GHz
- Direct frequency range up to 67 GHz
- Easy expansion of the frequency range to 110 GHz with external mixers
- Support of external mixers up to 1 THz
- High throughput in production
- Short test cycles, high throughput
- Fast time domain power measurement
- List mode: combined measurement of various parameters with a single command
- Up to 70 measurements/s in zero span via IEC/IEEE bus, including trace data transfer
- Fast frequency counter: 0.1 Hz resolution for a measurement time of
- 859x/8566-compatible IEC/IEEE bus command set
- High measurement speed
- Short test cycles, high throughput
-
