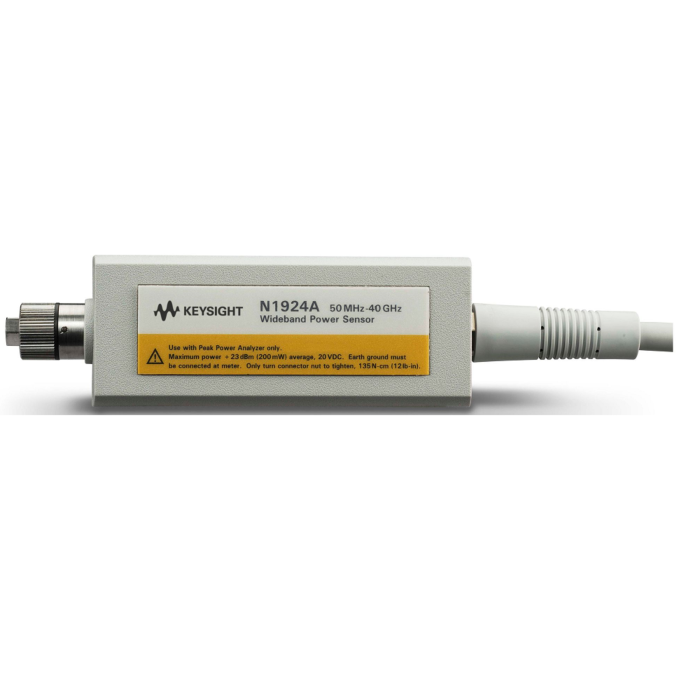

Keysight N1924A for Rent, Wideband Power Sensor, 50 MHz to 40 GHz

Keysight N1924A Highlights

The N192XA sensors are the first to provide internal zero and calibration by integrating a DC reference source and switching circuits into the power sensor. This feature eliminates the multiple connections associated with using an external calibration source, thus minimizing connector wear, test-time and measurement uncertainty.

• Zero and calibrate while connected to the DUT
• -35 dBm to +20 dBm wide dynamic range for peak power measurements Calibration factors, linearity, temperature and bandwidth correction data stored in EEPROM
• Precision 2.4mm connector as standard Sensor cable fixed to sensor. Available cable lengths are 1.5m (5ft) and 3m (10ft)
• Fixed cable option length 1.5M (5 Ft.)
