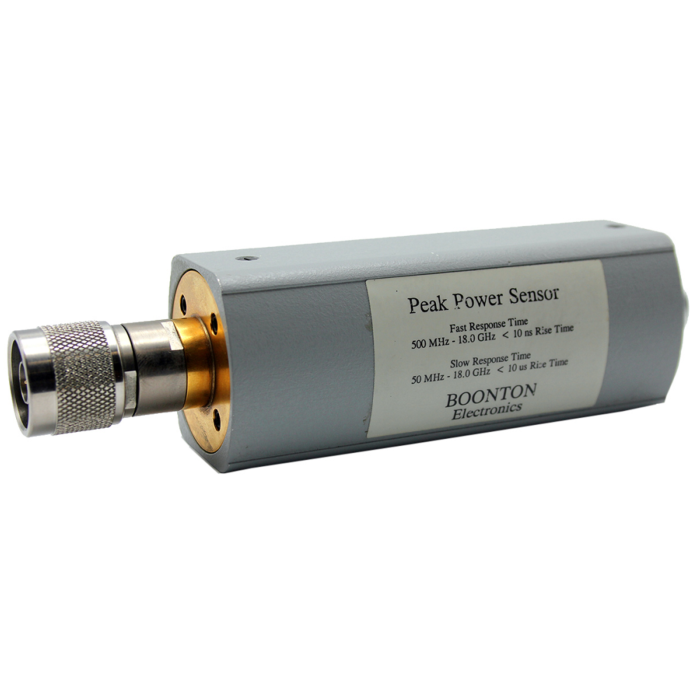

Boonton 59318 for Rent, Wideband Peak Power Sensors, 18GHz

Product Highlights

• Impedance 50 ohm
• RF Connector N (M)
• Frequency Range (Low Bandwidth) 5 - 18 GHz (0.05 - 18 GHz)
• Dynamic Range
• Peak Power Range** .-24 to 20 dBm
• CW Power Range -34 to 20 dBm
• Int. Trigger Range -10 to 20 dBm
• Overload Rating
• Pulse 1 W for 1us
• Continuous 200 mW
• Sensor Response
• Fast Risetime (Bandwidth) <10 ns (50 MHz typical)
• Slow Risetime (Bandwidth) <10 us (350 kHz)
• Maximum SWR @ 0 dBm
• 0.5 - 2 GHz 1.15
• 2 - 16 GHz 1.28
• 16 - 18 GHz 1.34
