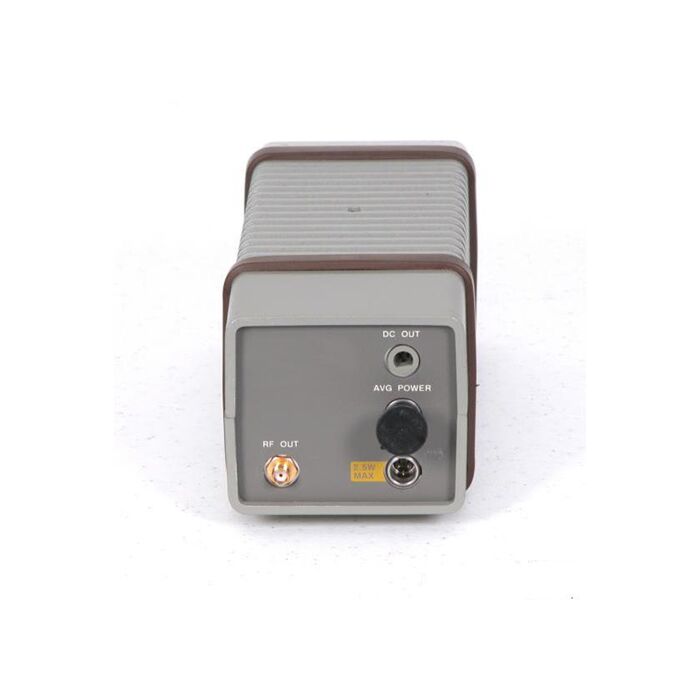

Keysight 83411C for Rent, Light Wave Coupler

Keysight 83411C Highlights

The Keysight 83400 family of lightwave receivers and sources offer wide bandwidth, stability and dynamic range.

• Wavelength: 1300 nm / 1550 nm
• Maximum Average Power: 3 mW
• Responsivity at 50 MHz: 0.45 A/W, -7 dBe nominal
• Demodulation Frequency Response, Uncorrected: 300 kHz to 6 GHz: ± 2.0 dB, 3 to 6 GHz: ±2.5 dB
• Demodulation Frequency Response, Corrected: ± 1.5 dB, ± 0.7 dB typical
• Compatible Fiber: 9 / 125 µm
• Used with the Keysight Agilent HP 8702B Lightwave Component Analyzer
