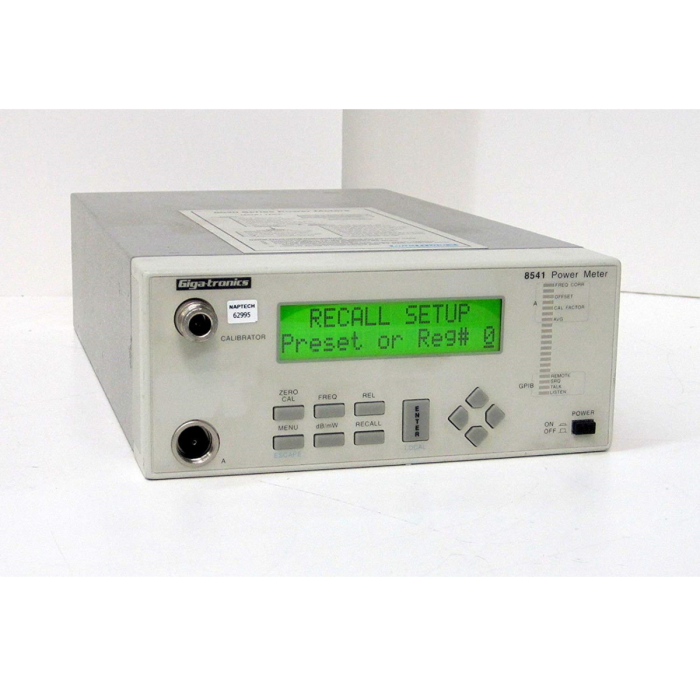

Gigatronics 8541 For Rent

Gigatronics 8541 for Rent, Universal Power Meter, 10MHz to 40GHz, up to 90dB dynamic range

Order # 8541-RENT2

Mfg # 8541

call-regular 800-828-1470
$0.00
  • Overview
  • Technical Resources

Gigatronics 8541 for Rent, Universal Power Meter, 10MHz to 40GHz, up to 90dB dynamic range

Order # 8541-RENT2 | Mfg # 8541

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

  • Frequency Range 100 kHz to 40 GHz, depending on sensor used
  • Power Range: -70 to +47 dBm, depending on sensor used
  • Choose from an extensive line of CW, Peak, Modulation and True RMS sensors
  • Single Sensor Dynamic Range:
    • CW Power Sensors: 90 dB (-70 to +20 dBm)
    • Modulation Power Sensors: 87 dB CW, 60 to 80 dB Modulation Mode
    • Peak Power Sensors: 50 dB CW, 47 dB Peak
  • Linearity ± 0.02 dB
  • Automatically measure average power of TDMA, GSM, and CDMA signals
  • Optional Time Gating to program a measurement's start time and duration
  • Achieve 500 reading per second over GPIB
  • Use the Fast Buffered Mode to capture up to 4000 readings per second
  • Measure the instantaneous peak power level of a pulse modulated signal

Technical Resources

Gigatronics 8540 Series Datasheet
