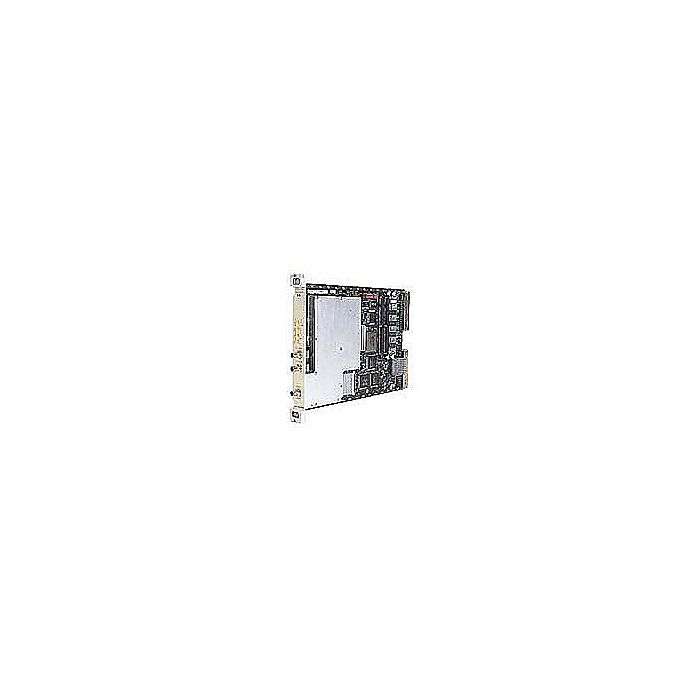

Keysight E1439A for Rent, VXI Digitizer Plug-In Module, 70 MHz, IF Input

Keysight E1439A Highlights

The Keysight 1439A/B is ideal for applications in RF signal acquisition, analysis and high resolution ATE. It has a baseband input and a 70 MHz IF input, both with 36 MHz bandwidth. The single-channel 95 MSa/s digitizer combines exceptional spurious-free dynamic range with alias-protected signal conditioning, center-frequency tunable digital filters, and a large signal capture memory, all in a single-wide C-size VXI module. The single difference between the A and B versions is the inclusion of a 2.5Gbit/sec optical front panel data port and TTL trigger input for the 1439B.

• 36 MHz input bandwidth centered at 70 MHz
• -90 dBfs spurious-free dynamic range
• Anti-alias filter and signal conditioning
• 18MB RAM FIFO memory (expandable to 1.2 GB)
• 2.5 Gigabit/second FPDP (E1439B)
• Local bus and VXIbus outputs
• Multi-channel compatible
• VXI plug & play compatible
• Single-slot, C-size module
• OPT 001= Increase to 1.2 GB FIFO Memory
