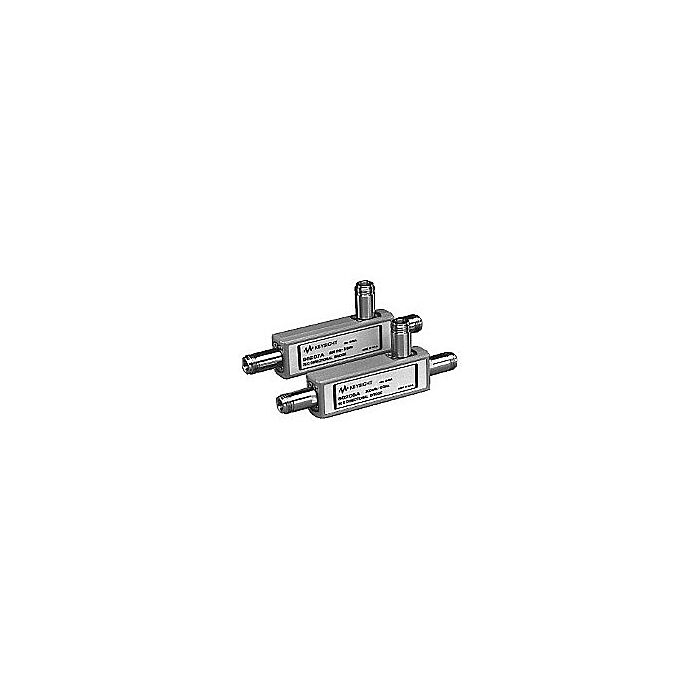

Keysight 86205A for Rent, RF Bridge, 50 Ohm, 300kHz to 6GHz

Keysight 86205A Highlights

The Keysight 86205A high directivity 50 ohm RF bridge offers unparalleled performance in a variety of general-purpose applications. It is ideal for accurate reflection measurements and signal leveling applications.

• Coupling factor: 16 dB + 0.15 dB/GHz (< 3 GHz); 16.5 dB - 0.20 dB/GHz (> 6 GHz)
• Directivity: 30 dB to 0.3 MHz, 40 dB to 2 GHz, 30 dB to 3 GHz, 20 dB to 5 GHz, 16 dB to 6 GHz
• Return loss: 23 dB to 2 GHz, 20 dB to 3 GHz, 18 dB to 5 GHz, 16 dB to 6 GHz
• Insertion loss: 1.5 dB + 0.1 dB/GHz
• High Directivity 40dB, Low Insertion Loss 1.5dB, Type-N female connectors
