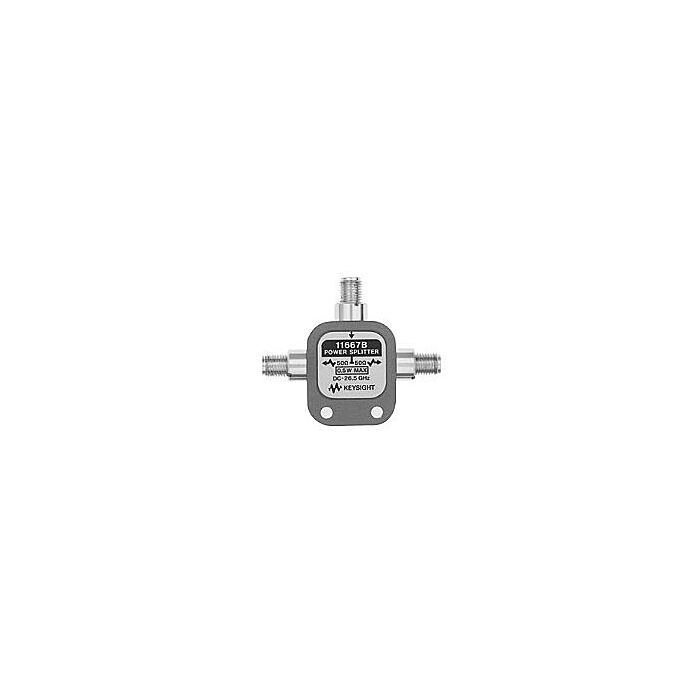

Keysight 11667B for Rent, Power Splitter, DC to 26.5GHz, Two-resistor type

Keysight 11667B Highlights

The Keysight 11667B power splitter is recommended when making wideband ratio measurements using a Keysight 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxilliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 26.5 GHz allows wideband measurements to be made with a minimum of uncertainty.

• Superior RF Performance
• Equivalent output SWR: 1.22
• Maximum input power: 0.5 W
• Insertion loss: 7 dB
• Tracking between two ports: 0.25 dB to 18 GHz, 0.40 to 26.5 GHz
• Equivalent Output SWR: 1.22, Max Input 0.5W, Connectors 3.5 mm (f) all ports
