Dewetron EPAD2-TH8-U For Rent

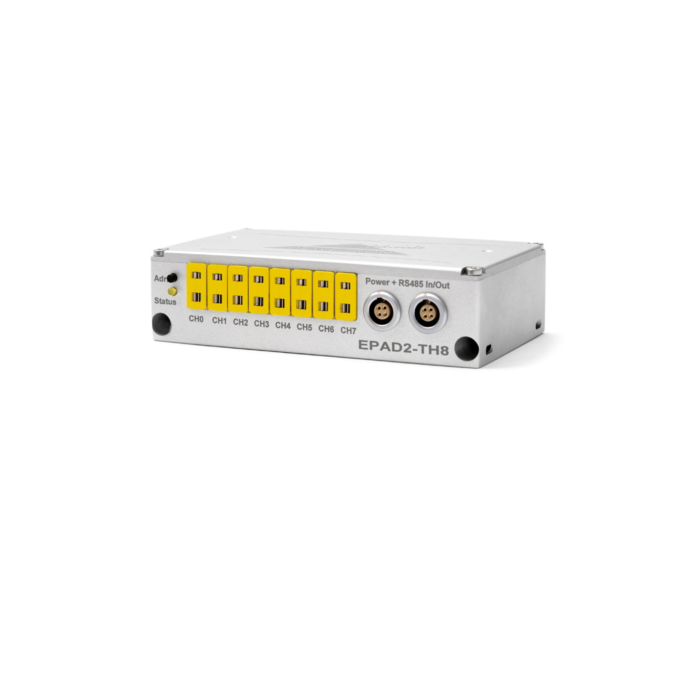

Dewetron EPAD2-TH8-U for Rent, High Precision Thermocouple Amplifier, 8 Channel

Order # EPAD2-TH8-U-RENT2

Mfg # EPAD2-TH8-U

call-regular 800-828-1470
$0.00
  • Overview
  • Technical Resources

Dewetron EPAD2-TH8-U for Rent, High Precision Thermocouple Amplifier, 8 Channel

Order # EPAD2-TH8-U-RENT2 | Mfg # EPAD2-TH8-U

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

EPAD2 modules provide the data via RS-485 interface. Also 24 bit A/D conversion, 12 Hz sampling rate and 350 V galvanic isolation. For EPAD2 series there is an interface module – EPAD2-USB– which converts the RS485 data to USB. DEWETRON systems have an EPAD2 interface, for simply connecting EPAD2 modules as static channel expansion by a single cable.



Key features CPAD2 and EPAD2:

  • Extreme rugged box - milled from a solid block of aluminium
  • 24 bit A/D converter per channel
  • Galvanic isolation of 350 V (channel to channel as well as channel to power supply, bus and chassis)
  • Flexible connection possibilities via CAN, USB, RS-232, RS-485
  • Simple and flexible mounting

CPAD2-TH8-x / EPAD2-TH8-x



Isolated thermocouple module for dedicated tc types

  • 8 input channels for thermocouples type K, J or T (others on request)
  • Highest precision (typ. 0.4°) even at rapidly changing ambient temperature
  • 350 V isolation
  • 24 bit A/D converter per channel
  • 12 Hz sampling rate
  • Optional available with Lemo sockets
  • Perfect for field testing applications with changing ambient temperature (e.g. automotive)

Technical Resources

Dewetron EPad2/CPad2/CPad3 Datasheet
