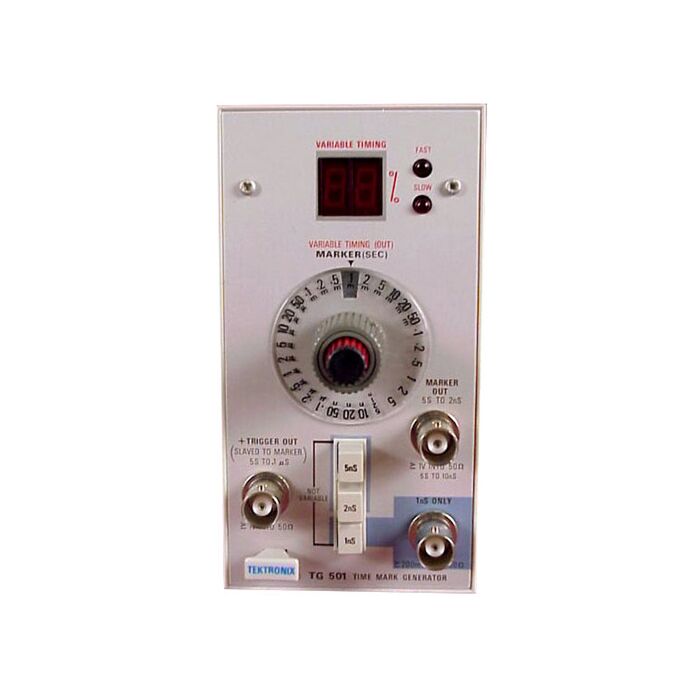

Tektronix TG 501 for Rent, Time Mark Generator

Tektronix TG 501 Highlights

The TG 501 Time Mark Generator provides marker outputs from five seconds to one nanosecond. A unique feature on the TG 501 is a variable timing output with a front-panel two-digit LED display which indicates percentage of timing error between the normal time interval and a variable interval set to line up the marker pulse with graticule or division mark on the display. This feature not only provides direct readout in terms of percent error, but also helps eliminate errors associated with visually estimating error from a display. Since many specifications are given in percentages, the error readout eliminates the need for computations and, additionally, lessens parallax discrepancies.

• Variable Timing Read Out
• Accurate Measurements
• Error Readout
