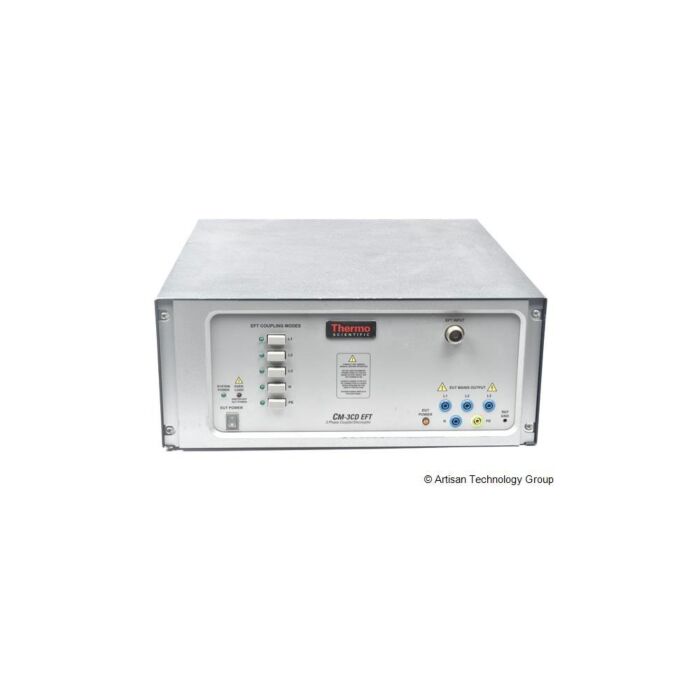

Thermo Keytek CM-3CDSRG-32 for Rent, 3 Phase Combined EFT and Surge Mains Coupler/Decoupler

Product Highlights

The Thermo / Keytek EMC Pro Advanced EMC Immunity Test System is an advanced EMC immunity test system developed by Thermo / Keytek in response to manufacturers' demands for a mid-range, multi-capability test system. Users may configure the EMC Pro from a single test capability to up to seven capabilities in a single unit. When test requirements change, or as standards evolve, upgrading is a simple matter of adding appropriate options or accessories offered by Thermo / Keytek to their existing EMCPro.

Features

• Multi-Capability Test System
• Configurable from a Single Test Capability Up to Seven Capabilities
• Easily Upgradeable

Configuration:

• EFT Waveforms: 5/50ns
• Surge Waveform (Open Circuit Voltage): 1.2/50µs
• Surge Waveform (Short-Circuit Current): 8/20µs
• Maximum Surge Voltage and Current: 6.6kV, 3.3kA
• Maximum EFT Voltage: 4.4kV
• AC Current: 32A/Phase Continuous
• Input Voltage: 100-240 VAC
